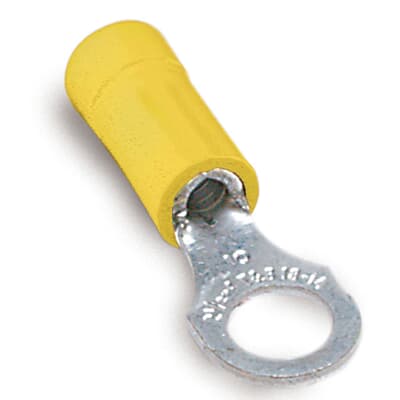

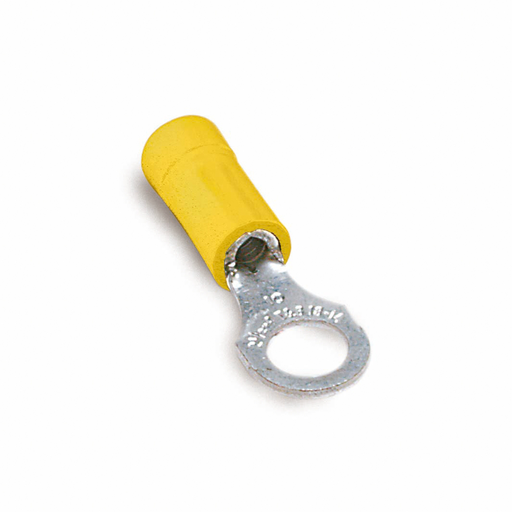

Thomas & Betts RC777 #8 Bolt Hole 12-10 AWG Wire Range Yellow Insulated Vinyl Ring Terminal

Manufacturer: ABB Thomas & Betts | Catalog # RC777 | Codale Part # 1569324
$65.99/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Vinyl Insulated Ring Terminal, Length 1.06 Inches, Width .31 Inches, Maximum Insulation .210, Bolt Hole #8, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated, 500 Pack

Technical Information

Barrel Type
Brazed Seam
Conductor Size
12-10 AWG
Insulation Material
Vinyl
Material
Copper
Standard
UL E9809
Stud Size
#8
Type
Long Sleeve
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210820194
Color
Yellow
Product UPC
78621082019
Weight
0.0050 lb
Features
  • These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wires flex point
  • Brazed seam barrel is serrated to obtain high pull-out value.
