Thomas & Betts RC1153 12-10 AWG Wire Range #10 Bolt Hole Yellow Insulated Nylon Fork Terminal

Manufacturer: ABB Thomas & Betts | Catalog # RC1153 | Codale Part # 1569328
$94.99/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page

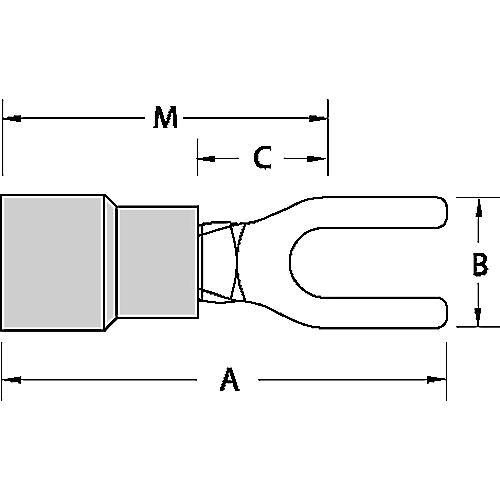

Nylon Insulated Fork Terminal, Length 1.00 Inches, Width .37 Inches, Maximum Insulation .210, Bolt Hole #10, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated, 500 Pack

Technical Information

Conductor Size
12-10 AWG
Insulation Material
Nylon
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E9809
Stud Size
#10
Temperature Rating
105 degrees C
Type
Short Sleeve
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210820293
Color
Yellow
Finish
Electro Tin Plated
Product UPC
78621082029
Weight
0.0100 lb
Features
  • Inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep. Nylon jacket is color-coded.
Notes
  • Most terminals can be put on Mylar Tape for reel fed applications by adding the suffix M to the bulk catalog numbers.
