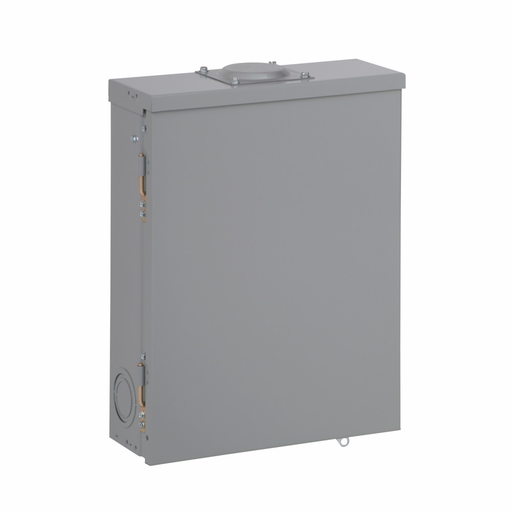

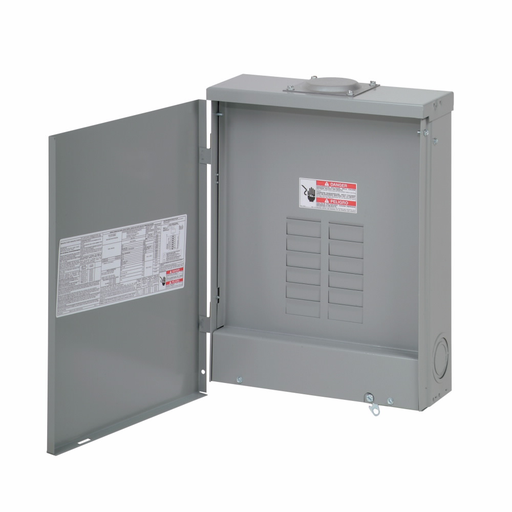

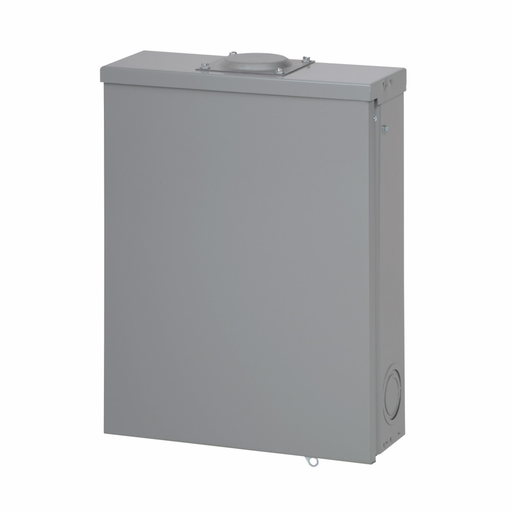

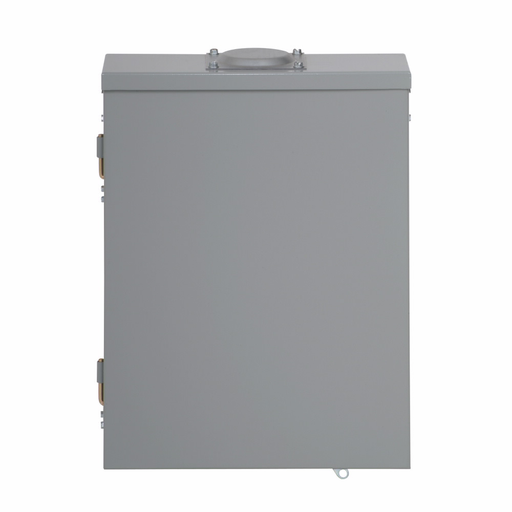

Eaton Electrical BR1224L200R 120/240 VAC 200 Amp 1-Phase 3-Wire 1 Inch Main Lug Load Center

Manufacturer: Eaton Cutler-Hammer | Catalog # BR1224L200R | Codale Part # 1571971
$172.51/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Eaton Eaton BR main lug loadcenter,No feed-thru lugs,includes BREQS125 hold-down screw, 200 A,B2R,Aluminum, NEMA 3R,Metallic,25 kAIC,BWH,NEMA 3R,24 Circuits,Twenty-four pole,12 Spaces,Three-wire,Single-phase,120/240V,#1 AWG-300 kcmil Cu/Al

Technical Information

Amperage
200 Amp
Applications
Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Bus Material
Aluminum
Conductor Size
1 AWG
Cover Type
Cover included
Enclosure
NEMA 3R
Enclosure Material
Metal
Interrupt Rating
25 kAIC
Number of Circuits
24
Number of Phases
1 Phase
Number of Spaces
12
Number of Wires
3 Wire
Size
B2r
Type
Main Lug
Voltage
120/240 Volt
Wire Size
300 kcmil

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
786676447355
Product UPC
78667644735
Weight
15 lb

Dimensions

Height
18-3/4 Inch
Length
5.19 Inch
