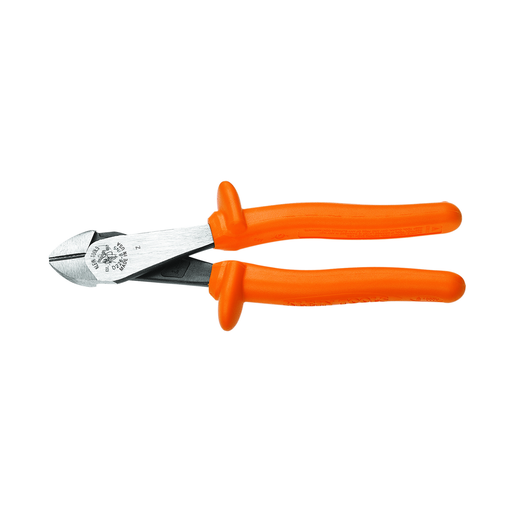

Product image for Klein D228-8-INS Diagonal Cutting Pliers, Insulated, High Leverage, 8"
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Klein D228-8-INS Diagonal Cutting Pliers, Insulated, High Leverage, 8"

Manufacturer: Klein Tools | Catalog # D228-8-INS | Codale Part # 158174
$57.99/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Primary Spec Sheet
These High-Leverage InsulatedDiagonal-Cutting pliers are 1000V rated for safety on the job. Thethick, exceptionally tough white inner layercoating is bonded to the tool. Integralthumb guards prevent hand contact with conductive parts. The bright orange handles make this tool comfortable to use all day and easy to identify in the field. The durable, molded insulation meets or exceeds IEC 60900 and ASTM F1505 standards for insulated tools. Cutting knives are induction hardened for long life.

Technical Information

Applications
For Screws, Nails
Handle Type
Dual Insulated
Insulated?
Yes
Material
Steel
Type
High-Leverage, Standard

Manufacturer Information

Brand
Klein Tools, Inc.

General Product Info

12-Digit UPC
092644720420
Color
Orange
Construction
Standard
Handle Color
Orange
Handle Finish
2-Layer Insulation
Handle Material
High-Dielectric Plastic
Product UPC
09264472042
Weight
0.700 lb

Dimensions

Depth
8-1/4 Inch
Handle Length
4.9 in
Height
0.438 Inch
Jaw Length
0.781 in
Jaw Thickness
0.46 in
Jaw Width
1.25 in
Length
8-1/4 Inch
Overall Length
8-1/4 in
Width
3.100 in

Certifications and Compliance

Country of Origin
USA

Certifications & Compliance

Prop 65 Warning
WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
Warnings
  • Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
  • Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
  • Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
  • Wear approved eye protection.
  • Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
  • Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
Features
  • Individually tested to exceed the IEC 60900 and ASTM F1505 standards, for insulated tools, and clearly marked with the official 1000-volt rating symbol
  • Two layers of insulation provide protection against electric shock
  • Thick, exceptionally tough, high-dielectric white inner coating is bonded to the tool
  • A flame retardant, impact-resistant, bright orange outer coating
  • High-leverage design. Rivet is closer to the cutting edge for 36-percent greater cutting power than other plier designs
  • Integral guards help prevent hand contact with conductive parts
  • Made of forged steel for maximum durability
  • Flame Retardant and Impact Resistant Handle
  • Klein Tools Pliers are individually tested to exceed the IEC 60900 and ASTM F1505 standards, for insulated tools, and clearly marked with the official 1000-volt rating symbol
  • Made in USA
  • Klein Tools Pliers are individually tested to meet or exceed ASTM F1505-16(2021) and IEC 60900:2018 standards for insulated tools, and clearly marked with the official 1000-volt rating symbol
