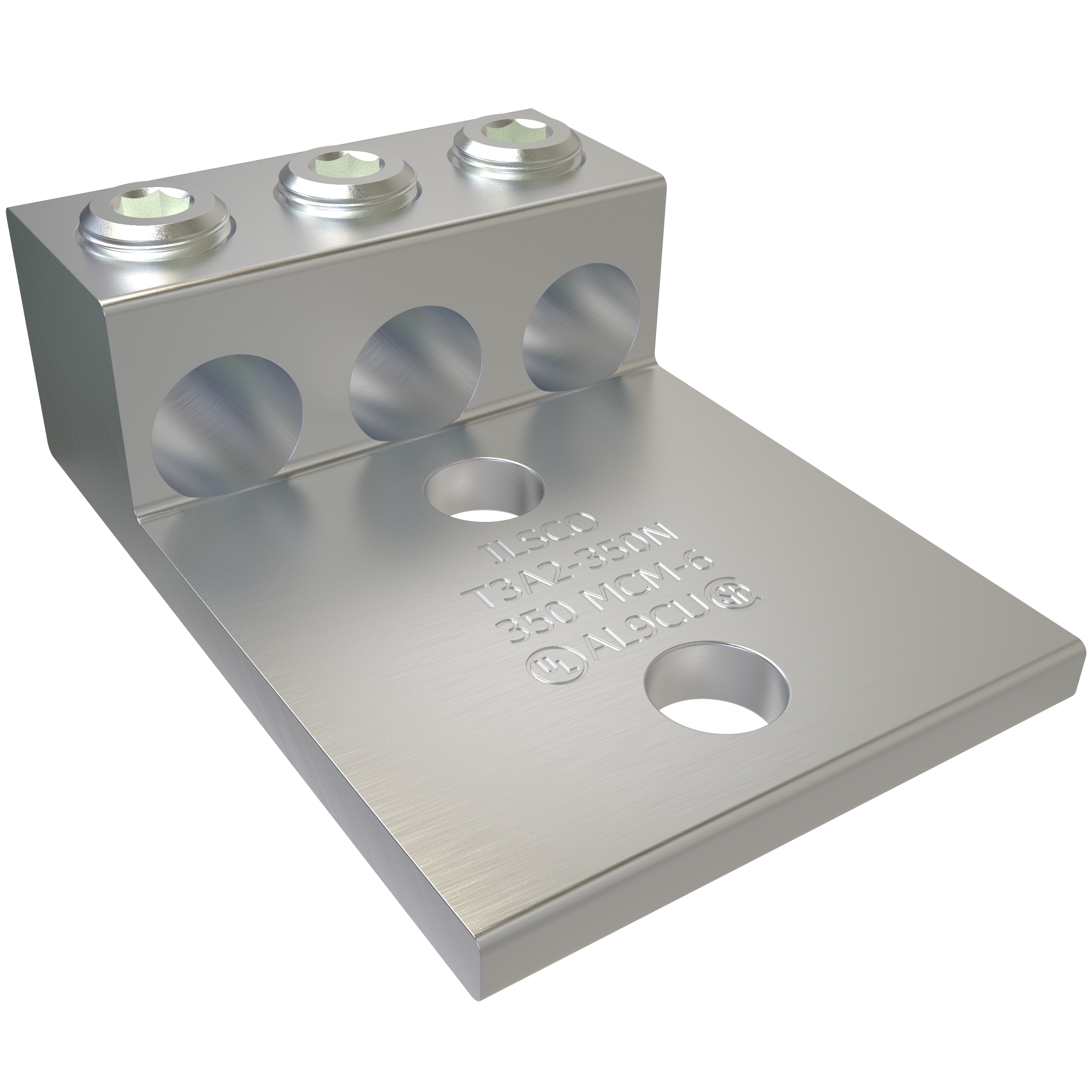

Product image for Ilsco T3A2-350N Aluminum Mechanical Lug, Conductor Range 350-6, 3 Ports, 2 Hole, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Ilsco T3A2-350N Aluminum Mechanical Lug, Conductor Range 350-6, 3 Ports, 2 Hole, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # T3A2-350N | Codale Part # 158363
$151.55/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ILSCO Mechanical Lug, Three Conductor, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,2 mounting hole(s), mounting bolt/stud size 1/2 in, mounting hole spacing 1.75 in., UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 350 kcmil - 6 Str, 3 conductors, 3 ports/wireways, Drive Type Main 5/16 Internal Hex, rated for 35 kV, primary color Silver, 1 poles,

Technical Information

Applications
Mechanical Lug, Three Conductor
Conductor Material
Aluminum,Copper
Conductor Type
Stranded
Connection Type
Mechanical
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
0.563 in
Number of Conductors
3
Number of Holes
2 Hole
Standard
UL File Number: E6207,CSA File Number: LR-29601,UL Specifications: UL 486A-B
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
T3A:3 CONDUCTOR AL/CU
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669899450
Color
Silver
Finish
Tin Plated
Product UPC
78366989945
Weight
0.625 lb

Dimensions

Height
1-3/8 Inch
Length
4.312 Inch
Width
3 in
