Burndy YPC2A8U Compact compression connector designed to tap small lighting wires from secondaries Figure 6-shape separates run and tap, and minimizes galvanic corrosion

Manufacturer: Hubbell-Burndy | Catalog # YPC2A8U | Codale Part # 159061
$247.65/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Compact compression connector designed to tap small lighting wires from secondaries. Figure 6-shape separates run and tap, and minimizes galvanic corrosion.

Technical Information

Applications
Combinations of Copper, Aluminum, ACSR, Compressed and Compact Conductors
Conductor Size
Run: 6 - 4 AWG ACSR; 6 - 2 AWG Compressed ACSR; 4 - 2 AWG Solid, 6 - 2 AWG Stranded Aluminum And Copper; 4 - 2 AWG Compressed Aluminum
Material
Copper
Plated?
No
Plating Type
Unplated

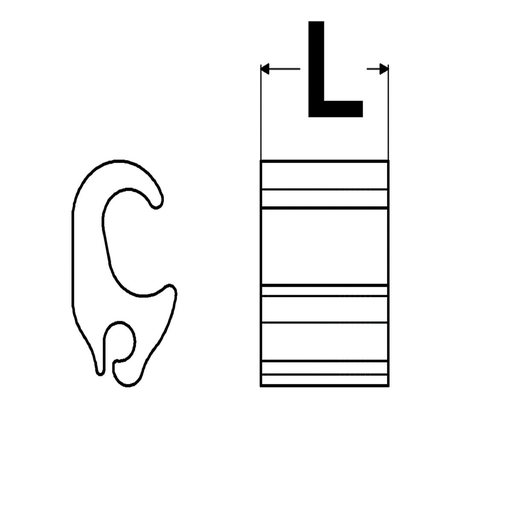

Size
5/8 IN Length
Tap Size
14 AWG Solid - 8 AWG Stranded Aluminum And Copper
Type
YPC-A-U

Manufacturer Information

Brand
Burndy
Sub Brand
Crimpit™

General Product Info

12-Digit UPC
781810135686
Finish
Bare
Product UPC
78181013568
Weight
0.0230 lb

Dimensions

Height
0.97 Inch
Length
5/8 Inch
Overall Length
18 mm
Width
0.56 in

Certifications and Compliance

Country of Origin
Mexico
CSA
No
Features
  • Compact compression connector designed to tap small lighting wires from secondaries
  • Figure 6-shape separates run and tap, minimizing galvanic corrosion
  • Connector can be gripped in tool and slipped over line for easier installation
  • Pre-filled with PENETROX joint compound and stripsealed
