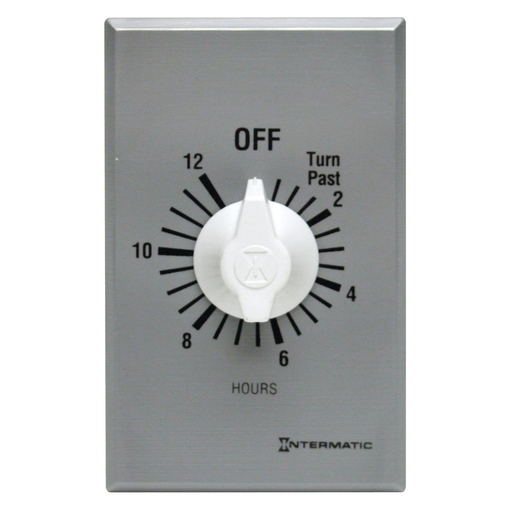

Intermatic FF12HC 12 Hour 125 to 277 VAC 60 Hz SPST Countdown Timer

Manufacturer: Intermatic | Catalog # FF12HC | Codale Part # 1610596
$76.02/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Primary Spec Sheet
The FF Series Commercial Countdown Timers are designed to replace any standard wall switch and do not require electricity to operate. These energy-efficient switches automatically limit the ON times for fans, lighting, motors, heaters, and other energy consuming loads. A commercial "brushed metal" look plate (plastic construction) meets NEC requirements. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.

Technical Information

Action
SPST
Amperage
15 Amp
Applications
Air Movement & Ventilation,Indoor Lighting Control,Motor Control,Outdoor Lighting Control
Connection Type
Teeter Type
Contact Configuration
1 NO
Contact Material
Tungsten
Contact Rating
7 AMP @ 125 VAC (Tungsten), 20 AMP @ 125 VAC (Resistive), 10 AMP @ 250/277 VAC (Resistive)
Frequency
50/60 Hz
Input Voltage
125-277 V
Material
Plastic
Max Operating Temperature
120 degrees F
Min Operating Temperature
4 degrees C
Mounting Type
Wall Mount
Number of Poles
1 Pole
Operating Temperature
155 degrees F
Power Source
1 hp at 120 VAC, 2 hp at 240 VAC
Size
2.79 HEIGHT X 1.6 WIDTH X 1.19 DEPTH IN, 70.86 HEIGHT X 40.64 WIDTH X 30.22 DEPTH MM
Standard
CCSAus Certified,HVACR,NEC,UL Listed,UL Recognized
Switch Type
SPST
Tc Connection
Teeter Type
Temperature Rating
-40 to 155 degrees F
Type
Commercial Spring Wound Auto-Off
Voltage
125-277 VAC

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275005259
Color
Silver
Product UPC
07827500525
Weight
0.301 lb

Dimensions

Depth
1-1/4 Inch
Height
4-1/8 Inch
Warranty Length
1 yr
Width
1.75 in

Certifications and Compliance

Country of Origin
Tunisia

Certifications & Compliance

Prop 65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - DEHP
Features
  • 12-Hour timer
  • SPST (Single-Pole Single-Throw)
  • Breaks circuit at end of timing cycle
  • No electricity required to operate
  • Replaces any standard or decorator single-gang wall switch
  • Automatically limits ON time for energy consuming loads
  • Quick and easy installation
  • Time-saving up front terminal connection with teeter-type terminals
  • Brushed metal look switch plate meets NEC requirements (plate is included)
  • Incandescent/fluorescent/CFL/LED compatible
