Burndy J990 Copper Bail for Compression C Connector, Electro Tin Plated

Manufacturer: Hubbell-Burndy | Catalog # J990 | Codale Part # 1619407
$18.87/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
Tin plated, hard drawn copper bail designed to make hot-line clamp adapter using HYCRIMP, CABELOK, CRIMPIT or Figure 6-shaped CRIMPIT connectors.

Technical Information

Applications
Designed To Make Hot-Line Clamp Adapter Using HYCRIMP, CABELOK CRIMPIT Or Figure 6 -Shaped CRIMPIT Connectors
Conductor Size
6 AWG-266.8 kcmil
Material
Copper
Plated?
Yes
Plating Type
Tin - Electro Plated

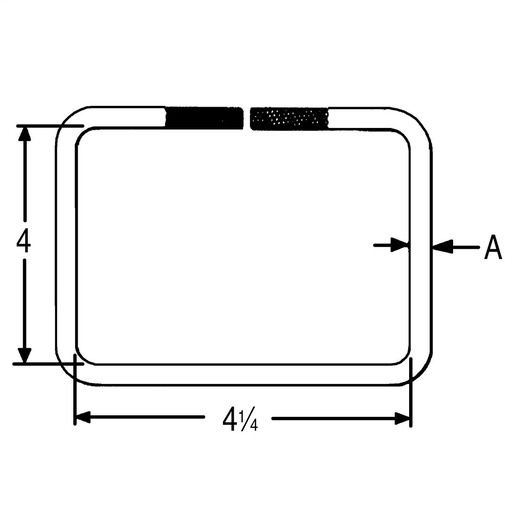

Size
4 IN Height X 4-1/4 IN Length
Type
Bail

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810014080
Finish
Tin Plated
Product UPC
78181001408
Weight
0.2900 lb

Dimensions

Height
4.1 Inch
Length
4.33 Inch
Width
0.25 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
No
Features
  • Designed to make hot-line clamp adapter using HYCRIMP, CABELOK CRIMPIT, or Figure 6-Shaped CRIMPIT Connectors (sold separately)
  • Where hot sticks are used, the CABELOK CRIMPIT or Figure 6-Shaped CRIMPIT are recommended (sold separately)
  • The line can be approached with the connector and bail held in the tool
  • Bails are tin-plated hard drawn copper
