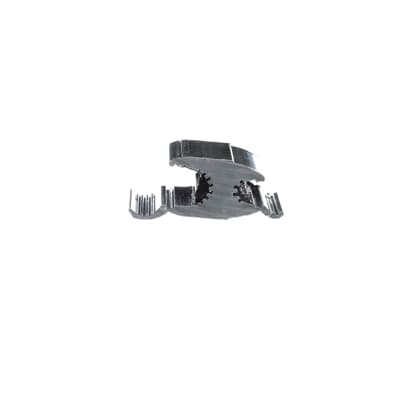

Blackburn WR379 Compression Connector

Manufacturer: ABB Thomas & Betts | Catalog # WR379 | Codale Part # 1645245
$6.21/ea
ea
Order in multiples of 250 (pack qty)
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page MDM Safety Data Sheet
Aluminum Wide Range H-Type Compression Connector, Industry Standard Size Code 5, Main: 4/0 - 3/0 ACSR, 4/0 Str. Tap: 2-6 ACSR, 1-6 Str., 1/0-6 Sol. Die: D, D3

Technical Information

Applications
For Combinations of Aluminum to Aluminum and Aluminum to Copper Conductors.
Material
Aluminum
Number of Conductors
2
Size
Length 1-13/16 inch
Tc Connection
Compression
Temperature Rating
90 degrees C
Type
Wide-Range, Parallel, Short Sleeve
Wire Size
Main: 4/0-3/0 ACSR or 4/0 STR AWG ; Tap: 2-6 ACSR or 1-6 STR or 1/0-6 SOL AWG

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786100095
Finish
Tin Plated
Product UPC
78378610009
Used With
Round, Solid and Stranded Conductors, Combinations of Aluminum to Copper, and Aluminum to Aluminum Conductors
Weight
0.1400 lb

Dimensions

Length
1-13/16 Inch
Features
  • Made of 1350 Aluminum alloy to provide high strength and conductivity. Prefilled with oxide inhibitor held captive in the rib/connection area.
  • RUS accepted and complies with ANSI C119.4
  • Enables excellent connector contact without distorting the conductor's shape.
  • Fold-in tabs provide positive tab interlock as tool closes.
