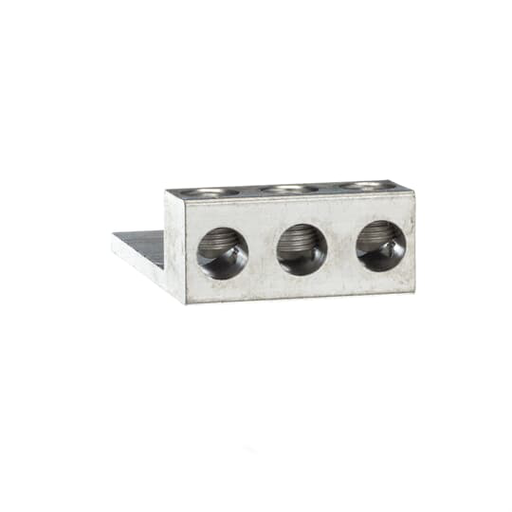

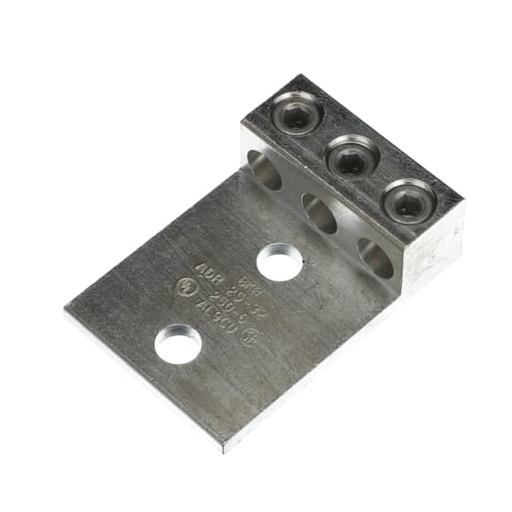

Product image for Blackburn ADR25-32 Extruded Aluminum Lug
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Email

Blackburn ADR25-32 Extruded Aluminum Lug

Manufacturer: ABB Thomas & Betts | Catalog # ADR25-32 | Codale Part # 1646194
$4,912.28/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
30 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page
Type ADR-ALCUL Three-Conductor, Two-Hole Mount for Conductor Range Max 250 kcmil, Min 6 Str.

Technical Information

Conductor Size
6 AWG-250 kcmil
Material
Aluminum
Number of Conductors
3
Standard
UL E9809
Type
Dual-Rated

Manufacturer Information

Brand
ABB
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786610136
Finish
Tin Plated
Product UPC
78378661013
Weight
0.4900 lb

Dimensions

Length
4-3/16 Inch
Certifications
  • CSA
  • UL
Notes
  • Connectors accomodating conductors 600 kcmil and larger have double rows of set screws (D suffix).
  • UL 486B tested, AL9CU rated
  • NEMA spacing 1 3/4 inch centers.
Features
  • Easy Installation - no special tools required.
