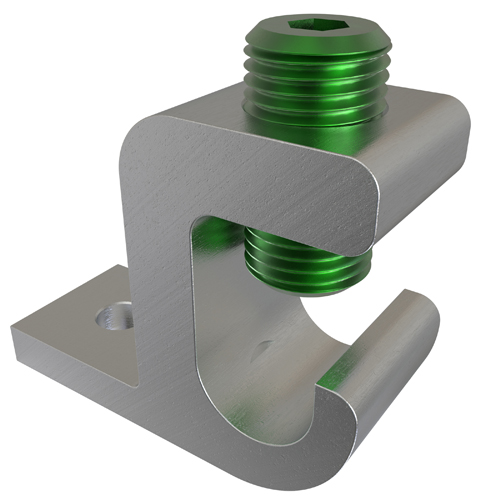

Product image for Ilsco GBL-250 Aluminum Lay-in Ground Lug, Dual Rated, Conductor Range 250-6, Tin Plated
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Ilsco GBL-250 Aluminum Lay-in Ground Lug, Dual Rated, Conductor Range 250-6, Tin Plated

Manufacturer: Ilsco | Catalog # GBL-250 | Codale Part # 168134
$11.67/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ILSCO Lay-in Ground Lug, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,1 mounting hole(s), mounting bolt/stud size 1/4 in, UL 467 Listed, Copper/Aluminum Primary Conductor 250 kcmil - 6 Str, 1 conductors, 1 ports/wireways, Drive Type Main 7/32 Internal Hex,

Technical Information

Applications
Lay-in Ground Lug
Conductor Material
Copper or Aluminum
Conductor Size
6 AWG-250 kcmil
Conductor Type
Solid
Connector Type
Clamp Screw
Material
Aluminum
Mounting Hole Size
9/32 in
Number of Conductors
1
Standard
CSA,E2186,UL
Stud Size
1/4 in
Tc Connection
Mechanical
Type
Dual Rated, Lay-In

Packaging

Pkg Qty
25

Manufacturer Information

Brand
Ilsco
Sub Brand
ClearChoice

General Product Info

12-Digit UPC
783669960150
Finish
Electro-Tin Plated
Product UPC
78366996015
Weight
0.1800 lb
