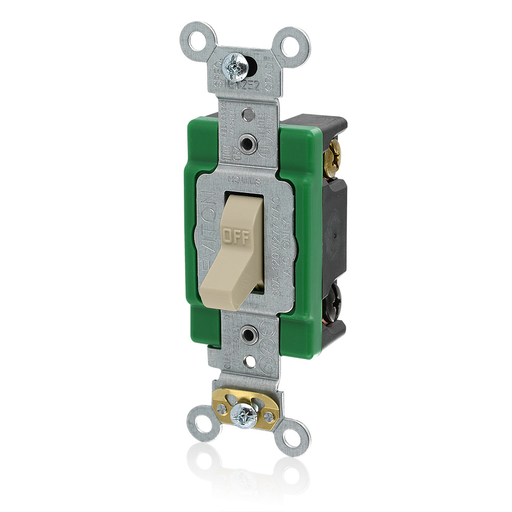

Leviton 3032-2I 120/277 VAC 30 Amp 2-Pole 2 Hp Ivory Thermoplastic Self Grounding Toggle Quiet Switch

Manufacturer: Leviton | Catalog # 3032-2I | Codale Part # 1710079
$95.97/ea
ea
Log in or register to view your price, purchase history, and more!
13 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
30 Amp, 120/277 Volt, Toggle Double-Pole AC Quiet Switch, Extra Heavy Duty Spec Grade, Self Grounding, Back & Side Wired - IVORY

Technical Information

Action
DP
Actuator
Toggle
Amperage
24 Amp
Applications
Commercial
Base Material
Thermoplastic
Body Material
Thermoplastic
Connection Type
Back Wired,Side Wired
Contact Material
Silver Alloy
Cover Material
Thermoplastic
Device Type
Toggle Switch
Dielectric
1500 V
Enclosure
WD-6
Flamability Class
Rated V-2 Per UL 94
Grade
Extra Heavy-Duty Industrial Specification
Grounding
Self-Grounding
Horsepower
2 hp
Max Current
24 A
Mounting Type
Box
NEMA
WD-1
Number of Poles
2 Pole
Operating Temperature
-40 degrees C
Size
46 H x 1.31 W x 13 D IN
Standard
ANSI C-73
Tc Connection
Back Wired;Side Wired
Temperature Rise
30 degrees C
Termination Type
Back Wire,Side Wire
Toggle Material
Polycarbonate
Torque
12 lb-in
Type
Toggle Switch
Voltage
120/277 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
Industrial Switches

General Product Info

12-Digit UPC
078477361924
Color
Ivory
Environmental Conditions
Flammability (Rated V-2 Per UL94)
Product UPC
07847736192
Weight
0.2110 lb

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
Features
  • Levitons Industrial Grade AC toggle switches for extra heavy-duty applications represent top-of-the-line quality and peak performance. Leviton uses the finest materials available and the highest production standards to produce industrial switches of unmatched versatility and reliability.
Color Variations
  • Brown
Related Products
  • 3032-2
  • 3032-2E
  • 3032-2R
  • 3032-2W
