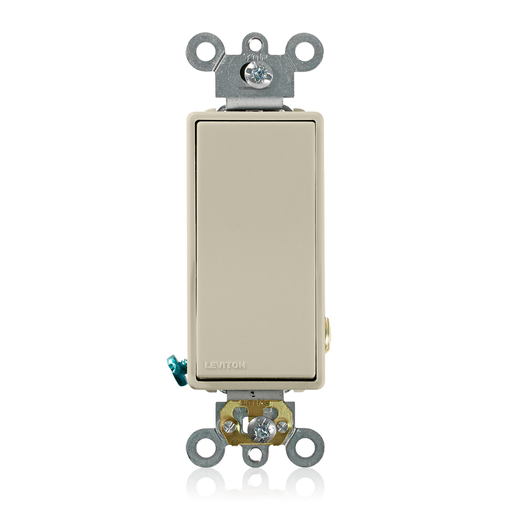

Product image for Leviton 5621-2I 120/277 VAC 20 Amp 1-Pole 2 Hp Ivory Thermoplastic Self Grounding Rocker Decorator Quiet Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Leviton 5621-2I 120/277 VAC 20 Amp 1-Pole 2 Hp Ivory Thermoplastic Self Grounding Rocker Decorator Quiet Switch

Manufacturer: Leviton | Catalog # 5621-2I | Codale Part # 1710501
$21.31/ea
ea
Log in or register to view your price, purchase history, and more!
271 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
20 Amp, 120/277 Volt, Decora Plus Rocker Single-Pole AC Quiet Switch, Commercial Spec Grade, Self Grounding, Back & Side Wired, - Ivory

Technical Information

Actuator
Rocker
Amperage
16 Amp
Applications
Commercial
Body Material
Thermoplastic Polyester
Connection Type
Back Wired,Side Wired
Contact Rating
20 A, 120/277 VAC
Device Type
Rocker Switch
Dielectric
1500 V
Enclosure
WD-6
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial Specification
Grounding
Self-Grounding
Horsepower
1 hp
Material
Thermoplastic
Max Current
16 A
Mounting Type
Box
NEMA
WD-1
Number of Poles
1 Pole
Operating Temperature
-40 degrees C
Size
46 H x 1.76 W x 1.60 D IN
Standard
ANSI C-73
Tc Connection
Back and Side Wired
Temperature Rating
-40 to 120 degrees C
Temperature Rise
30 degrees C
Termination Type
Back Wire,Side Wire
Torque
12 lb-in
Type
Rocker Switch
Voltage
120/277 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
Decora Plus™

General Product Info

12-Digit UPC
078477052655
Color
Ivory
Environmental Conditions
Flammability (Rated V-2 per UL94)
Product UPC
07847705265
Weight
0.2160 lb

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
Color Variations
  • Brown
Features
  • Decora® brand Plus devices combine designer styling with all the benefits of rugged Commercial Grade construction. The robust product offering includes: single pole, double pole, 3 and 4-way switches, momentary and maintained contact switches, as well as pilot light and illuminated switches.
