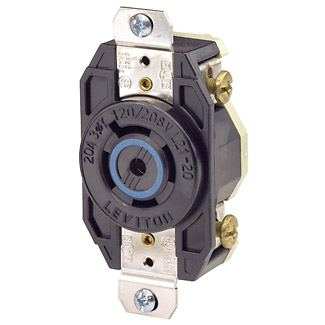

Leviton 2510 20 Amp 120/208 Volt NEMA L21-20R 4-Pole 5 Wire Flush Mounting Industrial Grade Grounding Black Locking Receptacle

Manufacturer: Leviton | Catalog # 2510 | Codale Part # 1711531
$102.75/ea
ea
Log in or register to view your price, purchase history, and more!
15 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
20 Amp, 120/208 Volt 3-Phase Y, NEMA L21-20R, 4P, 5W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, V-0-MAX - BLACK

Technical Information

Amperage
20 Amp
Applications
Commercial
Base Material
Nylon,Nylon
Body Material
Nylon
Conductor Size
14-8 AWG
Connection Type
Back and Side Wired
Contact Material
Brass,Brass
Cover Material
Valox
Device Type
Locking Receptacle
Dielectric
2000 V
Dielectric Strength
2000 V
Enclosure
WD-6
Face Material
Nylon
Flamability Class
Rated V-0 Per UL 94
Grounding
Grounding
Horsepower
2 hp
Material
PBT
Mounting Type
Box, Flush
NEMA

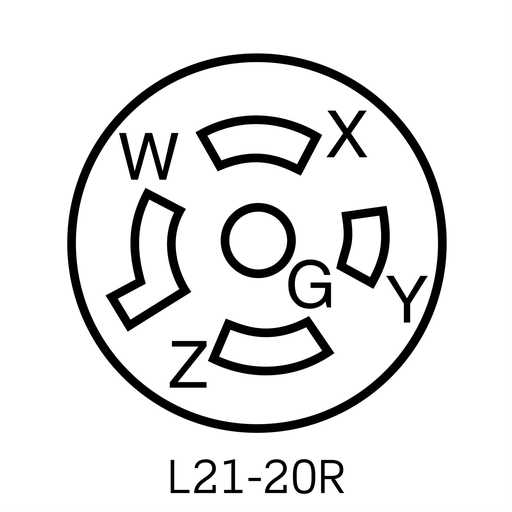

L21-20R
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
5 Wire
Operating Temperature
-40 to 60 degrees C
Rated Insulation Voltage
2000 V
Rating
UL 498
Screw Material
Brass,Brass,Chromated Brass,Chromated Brass
Screw Size
10-32,8-32
Size
3.63 H x 1.69 W x 1.31 D IN
Standard
ANSI C-73
Tc Connection
Back & Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Terminal Size
14-8 AWG
Termination Type
Back Wire,Side Wire
Type
Flush Mount Locking Receptacle
Voltage
120/208 Volt
Wire Count
5
Wire Size
14-8 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
V-0-Max™

General Product Info

12-Digit UPC
078477077207
Color
Black
Environment
Corrosive
Environmental Conditions
Flammability (Rated V-0 Per UL94),Flammability (Rated V-2 Per UL94)
Product UPC
07847707720
Weight
0.3400 lb

Dimensions

Warranty Length
Lifetime Limited,Lifetime Limited

Certifications and Compliance

Country of Origin
Mexico
CSA
C22.2 No. 42
NEMA
  • L21-20R
Features
  • Levitons Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
