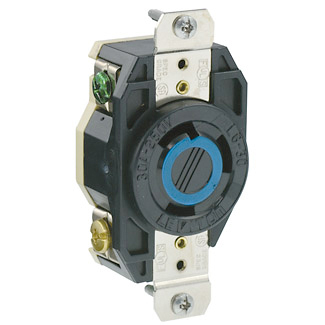

Leviton 2620 30amp 250v Black Locking Single Flush Receptacle, 2-Pole 3-Wire, Industrial Grade

Manufacturer: Leviton | Catalog # 2620 | Codale Part # 1711539
$87.25/ea
ea
Log in or register to view your price, purchase history, and more!
118 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
30 Amp, 250 Volt, Flush Mounting Locking Receptacle, Industrial Grade, Grounding, V-0-MAX, Black

Technical Information

Amperage
30 Amp
Applications
Commercial
Base Material
Valox,Valox
Body Material
Nylon
Conductor Size
14-8 AWG
Connection Type
Back and Side Wire
Contact Material
Brass,Brass
Cover Material
Valox
Device Type
Locking Receptacle
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
Ultramid
Flamability Class
Rated V-0 Per UL 94
Grade
Commercial
Grounding
Grounding
Horsepower
2 hp
Material
PBT
Mounting Type
Box, Recessed/Flush

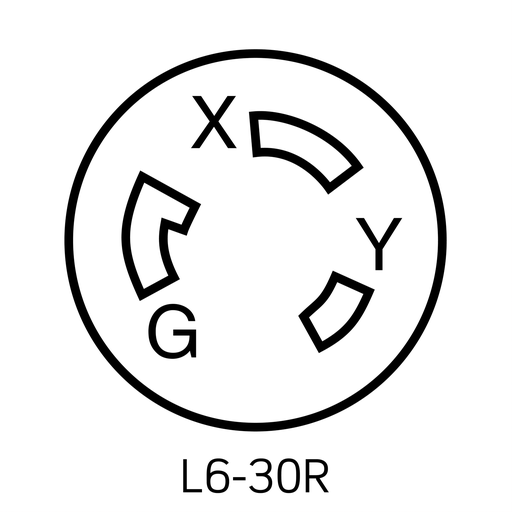

NEMA
L6-30R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 to 60 degrees C
Rated Insulation Voltage
2000 V
Rating
UL 498
Screw Material
Brass,Brass,Chromated Brass,Chromated Brass
Screw Size
10-32,8-32
Size
3.63 H x 1.69 W x 1.31 D IN
Standard
ANSI C-73
Tc Connection
Back & Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Terminal Size
14-8 AWG
Termination Type
Back Wire,Side Wire
Torque
14 lb-in
Type
Flush Mount Locking Receptacle
Voltage
250 Volt
Wire Count
3
Wire Size
14-8 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
V-0-Max™

General Product Info

12-Digit UPC
078477809495
Color
Black
Environment
Corrosive
Environmental Conditions
UL 94 Requirements, V0 and V2 Rated Flammability
Product UPC
07847780949
Weight
0.2550 lb

Dimensions

Warranty Length
Lifetime Limited

Certifications and Compliance

Country of Origin
Please Contact Customer Service
CSA
C22.2 No. 42
Features
  • Levitons Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
  • Ideal for transfer switches, compressors, and generators
NEMA
  • L6-30R
