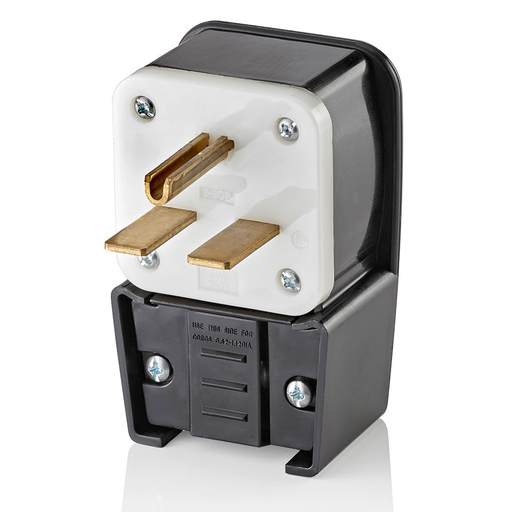

Leviton 9630-P 250 Volt 30 Amp 2-Pole 3-Wire NEMA 6-30P 2 Hp Black Nylon Grounding Angled Straight Blade Plug

Manufacturer: Leviton | Catalog # 9630-P | Codale Part # 1711573
$131.30/ea
ea
Log in or register to view your price, purchase history, and more!
12 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
30 Amp, 250 Volt, NEMA 6-30P, 2P, 3W, Plug, Straight Blade, Industrial Grade, Grounding, Angle - Black

Technical Information

Amperage
30 Amp
Applications
For Industrial Use
Blade Type
Solid Brass
Body Material
Super Tough Nylon
Conductor Size
10-4 AWG
Contact Material
Solid Brass
Cord Size
5/8 - 1-3/8 in
Device Type
Power Device
Dielectric
2000 V
Dielectric Strength
2000 V
Grounding
Grounding
Horsepower
2 hp
Material
Nylon
Mounting Type
Cable
NEMA
WD-1, WD-6
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Type
Steel,Zinc-Plated
Size
4.37 H x 2.76 W x 1.89 D IN
Standard
ANSI C-73
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
150 %
Torque
16 lb-in
Type
Angled
Voltage
250 Volt
Wire Count
3
Wire Size
10-4 AWG; 0.625-1.375 in

Manufacturer Information

Brand
Leviton
Sub Brand
Straight Blade Plugs and Conn

General Product Info

12-Digit UPC
078477809891
Color
Black,Orange,White
Environmental Conditions
Operating Temperature Range (-40 to 60) C
Product UPC
07847780989
Weight
0.6010 lb

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Country of Origin
Mexico
NEMA

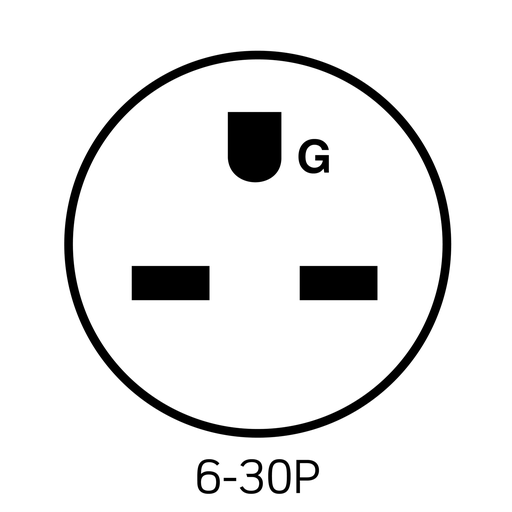

  • 6-30P
Features
  • Leviton's Heavy Duty Industrial Power plugs and connectors offer superior performance, long-lasting reliability and features that are backed by a 10-year warranty. Available in many NEMA configurations, you'll be sure to find the right device for your needs.
