Leviton 9432-P 125/250 Volt 30 Amp 3-Pole 4-Wire NEMA 14-30P 2 Hp Black Nylon Grounding Angled Straight Blade Plug

Manufacturer: Leviton | Catalog # 9432-P | Codale Part # 1711579
$143.76/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet MDM Safety Data Sheet
30 Amp, 125/250 Volt, NEMA 14-30P, 3P, 4W, Plug, Straight Blade, Industrial Grade, Grounding, Angle - Black

Technical Information

Amperage
30 Amp
Applications
Industrial
Blade Type
Solid Brass
Body Material
Super Tough Nylon
Conductor Size
10-4 AWG
Cord Size
0.625 - 1.375 in
Device Type
Power Device
Dielectric
2000 V
Grounding
Grounding
Horsepower
2 hp
Material
Nylon
Mounting Type
Cable
NEMA
WD-6
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Screw Type
Steel,Zinc-Plated
Size
4.37 H x 2.76 W x 1.89 D IN
Standard
ANSI C-73
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
150 %
Torque
16 lb-in
Type
4-Inlet, 1-Outlet, Rectangular, Power/Communication
Voltage
125/250 Volt
Wire Count
4
Wire Size
10-4 AWG; 0.625-1.375 in

Manufacturer Information

Brand
Leviton
Sub Brand
Straight Blade Plugs and Conn

General Product Info

12-Digit UPC
078477809952
Color
Black,Orange,White
Environmental Conditions
Operating Temperature Range (-40 to 60) C
Product UPC
07847780995

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Country of Origin
Mexico
NEMA

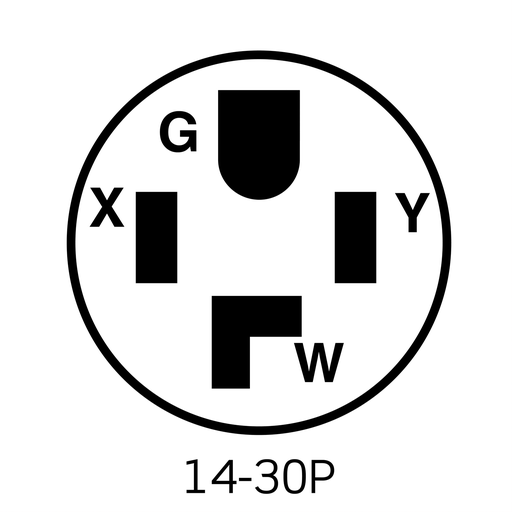

  • 14-30P
Features
  • Leviton's Heavy Duty Industrial Power plugs and connectors offer superior performance, long-lasting reliability and features that are backed by a 10-year warranty. Available in many NEMA configurations, you'll be sure to find the right device for your needs.
