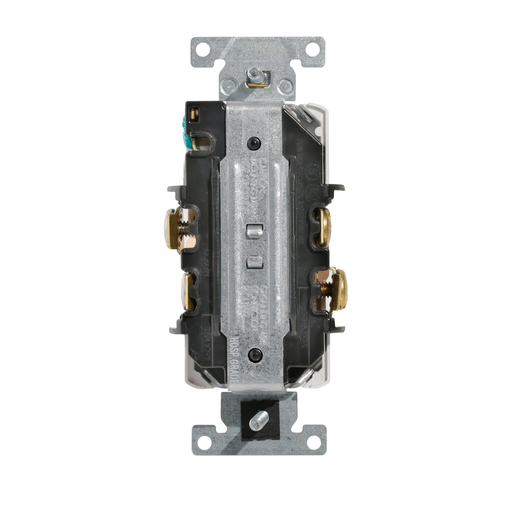

Image thumbnail 3
Image thumbnail 4
Email

Leviton 8300-HR 20amp 125volt Heavy-Duty Hospital Grade Slim Design Duplex Receptacle, Straight Blade, Back & Side Wired - Red

Manufacturer: Leviton | Catalog # 8300-HR | Codale Part # 1711846
$13.13/ea
ea
Log in or register to view your price, purchase history, and more!
150 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
20-Amp, 125-Volt, Heavy Duty Hospital Grade, Duplex Receptacle, Straight Blade, Self Grounding, Red

Technical Information

Amperage
20 Amp
Applications
Commercial
Body Material
Nylon
Conductor Size
14-10 AWG
Connection Type
Back and Side Wire
Device Type
Duplex Receptacle Outlet
Dielectric
2000 V
Dielectric Strength
2000 V
Face Material
Nylon
Flamability Class
Rated V-2 Per UL94
Grade
Hospital/Commercial
Grounding
Self-Grounding
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Wall Box
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
46 H x 1.51 W x 1.18 D IN
Standard
ANSI C-73
Tc Connection
Back & Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Termination Type
Back Wire,Side Wire
Torque
14 lb-in
Type
Duplex Outlet,Straight Blade
Voltage
125 Volt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Industrial Receptacles

General Product Info

12-Digit UPC
078477818930
Color
Red
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Product UPC
07847781893
Weight
0.2000 lb

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
Patents
  • MX321216
  • US8684771
Color Variations
  • Brown
NEMA
  • 5-20R
