Burndy GL2929 Mechanical Grounding Connector, 2 Cables to 1/4" Thick Bar, 2/0 AWG (Sol) -250 kcmil, 1/2" Stud

Manufacturer: Hubbell-Burndy | Catalog # GL2929 | Codale Part # 1714871
$257.33/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
Mechanical Grounding Connector, 2 Cables to 1/4" Thick Bar, 2/0 AWG (Sol) -250 kcmil, 1/2" Stud.

Technical Information

Applications
For Joining A Wide Range Of Two Parallel Copper Cables To 1/4 IN Thick Bar, Direct Burial In Concrete Or Ground
Bolt Size
1/2 IN
Conductor Size
2/0 AWG
Material
Copper
Plated?
No
Plating Type
Unplated
Type
GL

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810260029
Product UPC
78181026002
Weight
1.1600 lb

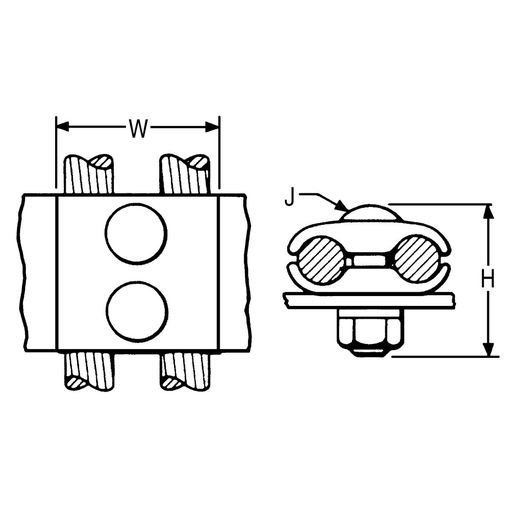

Dimensions

Height
2-1/4 Inch
Length
2.44 Inch
Width
1.22 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
No
Features
  • Rated for Direct Burial in earth or concrete
  • UL467 Listed
  • One wrench installation
