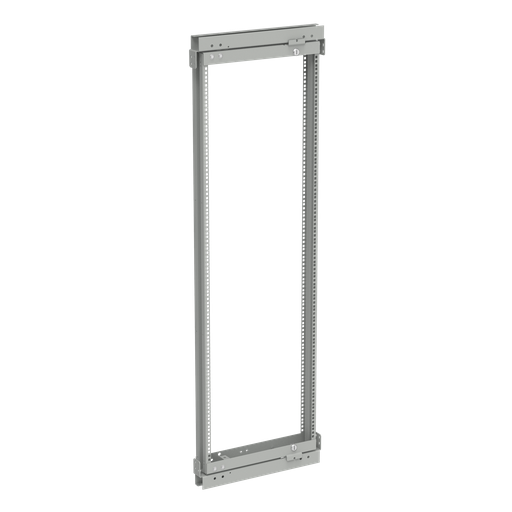

Product image for Hoffman PSF188 496 x 1615 mm 34-Unit Swing-Out Enclosure Rack Frame
Image thumbnail 0
Image thumbnail 1
Email

Hoffman PSF188 496 x 1615 mm 34-Unit Swing-Out Enclosure Rack Frame

Manufacturer: nVent Hoffman | Catalog # PSF188 | Codale Part # 1737565
$2,129.26/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Heavy-Duty Swing-Out Rack Frame allows 19-in. rack equipment to pivot out of the enclosure frame for better accessibility. The frames mount on hinges capable of 120-degree rotation. Mounting supports and swing-out frame can be located deeper into the frame using grid system straps. Deeper mounting affects the degree of opening of swing-out frame. Mounting supports for an 800-mm wide enclosure frame permit you to either center the rack-mounting frame or position it right or left. The frame can also pivot from either the left or the right for maximum flexibility.

Technical Information

Applications
For Controls and Drives, Power Distribution
Color Coding
RAL 7035
Material
Steel
Rack Unit
34
Size
fits 1800+ x 800mm
Type
Partial, 34-Unit

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
ProLine

General Product Info

12-Digit UPC
783510997601
Color
RAL 7035 Light Gray
Finish
Powder Coated
Product UPC
78351099760
Used With
1800+ x 800 mm Enclosure Frame
Weight
44 lb

Dimensions

Height
4 Inch
Length
64 Inch
Thickness
2.66 mm
Width
20.00 in
DISK UNSPSC
39121334
Features
  • Swing-out mounting supports mount to inside of frame at any vertical location; flexibility to select any model size equal to or shorter in height (i.e. use of 1400mm rack frame in 2000mm high enclosure)
  • Spring-loaded pivot post makes installation easy
  • Rack Frames are available for 600-, 700- and 800-mm wide enclosure frames
  • Swing-Out Rack Frames can also be installed in right, left or both bays of 1200-mm wide frames using center uprights
  • Furnished with hinges, two quarter-turn latches and mounting hardware
  • Complies with ANSI/EIA RS-310-D rack-mounting standards
  • Maximum equipment load is 300 lb. (136 kg)
  • Mounting holes accommodate either English or metric cage nuts, which are ordered separately
  • Swing-Out Rack Frame assemblies are supplied with mounting supports
  • Hinges that provide 170-degree rotation are optional
  • RAL 7035 textured light-gray polyester powder paint
