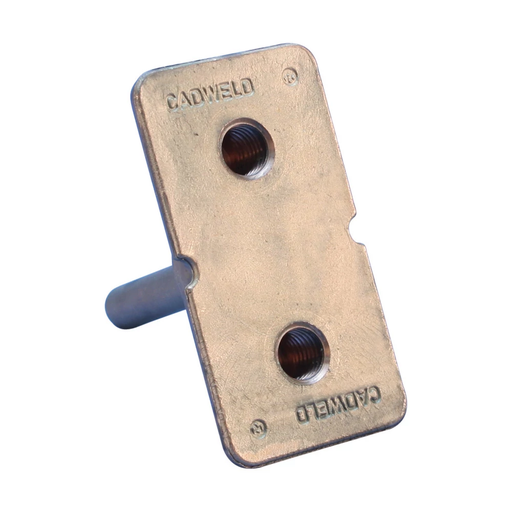

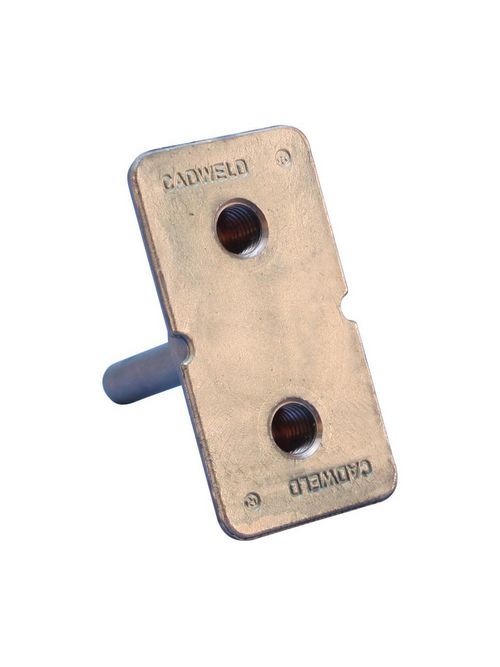

Erico B1622Q B162 Earthpoint, Two Stud, 0.53" dia, 1/2 UNC Thread

Manufacturer: Cadweld | Catalog # B1622Q | Codale Part # 1783501
$139.89/ea
ea
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check your local branch
Prop 65 Warning Prop 65 Warning Primary Spec Sheet Product Catalog Page
Long-lasting design. Low ground resistance and impedance. It has superior electrical conductivity and resistance to corrosion.

Technical Information

Applications
Facility Electrical Protection; Lightning Protection; Rail; Utility; Wind Power
Material
Brass
Standard
None
Thread Size
1/2 UNC
Type
B162 Earthpoint, Two Stud

Packaging

Standard Packaging Qty
1 pc

Manufacturer Information

Brand
nVent Erico
Sub Brand
ERICO

General Product Info

12-Digit UPC
782856322375
Product UPC
78285632237
Weight
0.31 kg

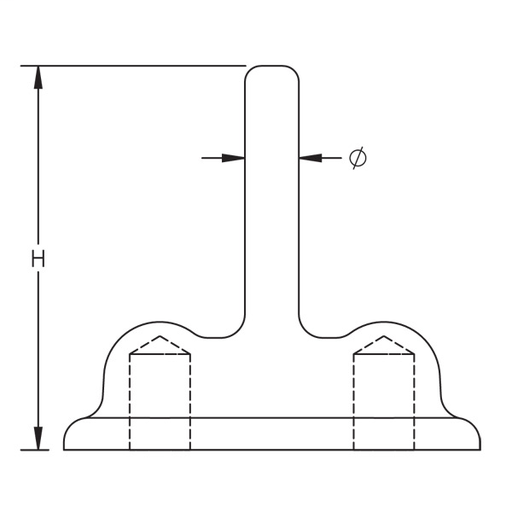

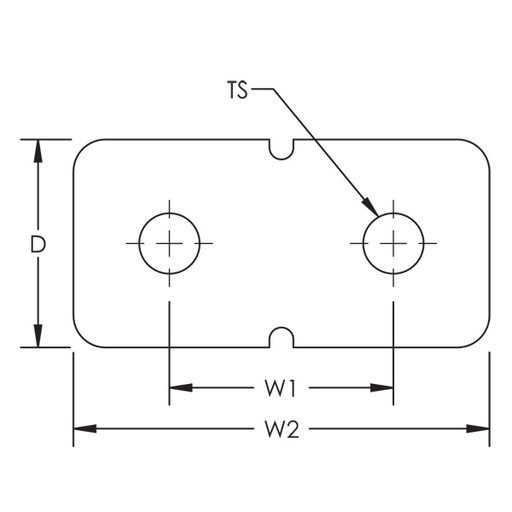

Dimensions

Depth
1-5/8 Inch
Diameter
0.53 Inch
Height
3 Inch

Certifications & Compliance

Prop 65 Warning
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Features
  • Long-lasting design
  • Low ground resistance and impedance
  • Superior electrical conductivity and resistance to corrosion
  • Electrically and mechanically robust and reliable
  • Easy to install as a Prefabricated Earthbridge once nVent ERICO Cadweld welded to a piece of conductor
Certifications
  • DoC, ERICO EP EN IEC 62561-1:2017
