Ocal ELL1-G 1" PVC-Coated 90deg Elbow, Standard Radius, Galv Steel - Gray

Manufacturer: ABB Ocal | Catalog # ELL1-G | Codale Part # 1786119
$73.45/ea
ea
Log in or register to view your price, purchase history, and more!
413 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page

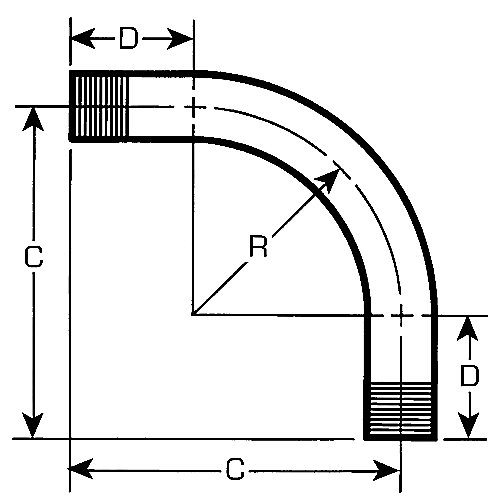

Standard Radius Elbow, 40 Mil PVC Coated, Pipe Size 1 Inch/27 Metric, Angle 90 Degrees, Radius 5-3/4 Inch/146.05 Millimeters, Offset 8 Inch/203.20 Millimeters, Straight End 2-1/4 Inch/57.15 Millimeters, Unbent Length 13.53 Inch/343.71 Millimeters, Hot-Dip Galvanized Rigid Steel, Gray

Technical Information

Applications
To Change Direction for Threaded, Rigid Conduit or When Terminating at a Box or Fitting
Connection Type
Threaded
Material
Steel
Size
1 in
Standard
CSA,CULus E46453
Tc Connection
90 Degree Bend
Trade Size
1 Inch
Type
90, Standard Radius

Manufacturer Information

Brand
ABB
Sub Brand
Ocal®

General Product Info

12-Digit UPC
704508369880
Color
Gray
Finish
Hot Dipped Galvanized
Product UPC
70450836988
Weight
2.1000 lb

Dimensions

Length
13.53 Inch
Notes
  • Dimensional values are of uncoated elbows.
  • Metric size designator (ANSI C80. 1-1994)
Certifications
  • UL
  • CSA
Features
  • A nominal .002 in. (2 mil) blue urethane on the interior.
  • A minimum .040 in. (40 mil) PVC coating on the exterior.
  • Color coded thread protectors on each end.
  • Ocal-Blue standard radius elbows are factory bent to reduce the time and wasted materials that can result from field bending.
