Ocal ELL3-G 3 Inch 90 Degree Gray PVC Coated Steel Elbow

Manufacturer: ABB Ocal | Catalog # ELL3-G | Codale Part # 1786132
$462.42/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page

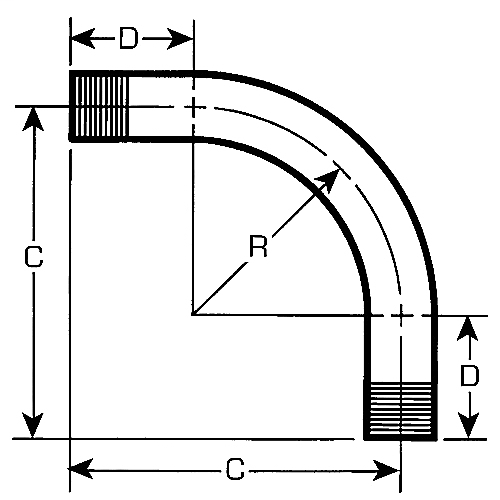

Standard Radius Elbow, 40 Mil PVC Coated, Pipe Size 3 Inch/78 Metric, Angle 90 Degrees, Radius 13 Inch/330.20 Millimeters, Offset 16-1/2 Inch/419.10 Millimeters, Straight End 3-1/2 Inch/88.90 Millimeters, Unbent Length 27.42 Inch/696.48 Millimeters, Hot-Dip Galvanized Rigid Steel, Gray

Technical Information

Applications
Used to Change Direction for Threaded, Rigid Conduit or When Terminating at a Box or Fitting
Material
Steel
Size
3 in
Standard
CSA,CULus E46453
Tc Connection
90 Degree Bend
Trade Size
3 Inch
Type
90, Standard Radius

Manufacturer Information

Brand
ABB
Sub Brand
Ocal®

General Product Info

12-Digit UPC
704508370510
Color
Gray
Finish
PVC Coated
Product UPC
70450837051
Weight
18.2000 lb

Dimensions

Length
27.42 Inch

Certifications and Compliance

Certifications
E 46453
Features
  • Ocal-Blue standard radius elbows are factory bent to reduce the time and wasted materials that can result from field bending.
  • A minimum .040 in. (40 mil) PVC coating on the exterior.
  • Color coded thread protectors on each end.
  • A nominal .002 in. (2 mil) blue urethane on the interior.
Certifications
  • CSA
  • UL
Notes
  • Dimensional values are of uncoated elbows.
  • Metric size designator (ANSI C80. 1-1994)
