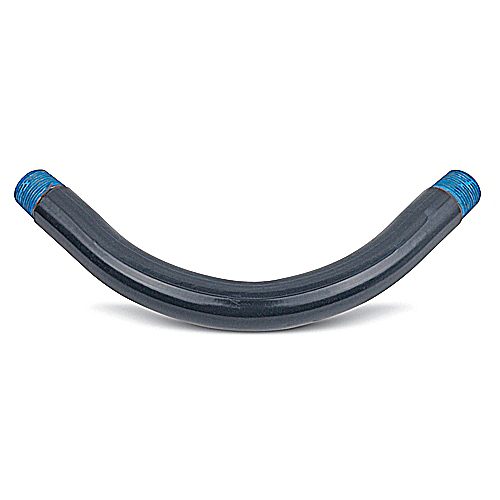

Ocal ELL4-G 4" PVC-Coated 90deg Elbow, Standard Radius, Galv Steel - Gray

Manufacturer: ABB Ocal | Catalog # ELL4-G | Codale Part # 1786138
$643.62/ea
ea
Log in or register to view your price, purchase history, and more!
53 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page

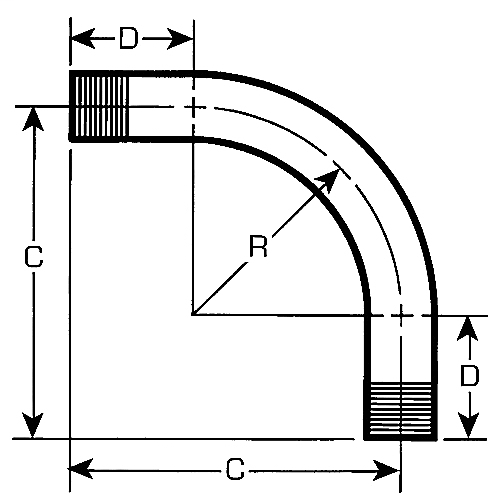

Standard Radius Elbow, 40 Mil PVC Coated, Pipe Size 4 Inch/103 Metric, Angle 90 Degrees, Radius 16 Inch/406.40 Millimeters, Offset 21-3/4 Inch/552.45 Millimeters, Straight End 5-3/4 Inch/146.05 Millimeters, Unbent Length 36.63 Inch/930.47 Millimeters, Hot-Dip Galvanized Rigid Steel, Gray

Technical Information

Applications
Used to Change Direction for Threaded, Rigid Conduit or When Terminating at a Box or Fitting
Connection Type
90 Degree Bend
Material
Steel
Size
4 in
Standard
CSA,CULus E46453
Tc Connection
90 Degree Bend
Trade Size
4 Inch
Type
90, Standard Radius

Manufacturer Information

Brand
ABB
Sub Brand
Ocal®

General Product Info

12-Digit UPC
704508370688
Color
Gray
Finish
PVC Coated
Product UPC
70450837068
Weight
32.0000 lb

Dimensions

Length
36.63 Inch
Certifications
  • CSA
  • UL
Notes
  • Dimensional values are of uncoated elbows.
  • Metric size designator (ANSI C80. 1-1994)
Features
  • A minimum .040 in. (40 mil) PVC coating on the exterior.
  • A nominal .002 in. (2 mil) blue urethane on the interior.
  • Ocal-Blue standard radius elbows are factory bent to reduce the time and wasted materials that can result from field bending.
  • Color coded thread protectors on each end.
