Caddy 3000037EG Universal Beam Clamp, Electrogalvanized, 3/8" Rod, 3/4" Max Flange

Manufacturer: Caddy Fasteners | Catalog # 3000037EG | Codale Part # 1798140
$947.92/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
4,013 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page

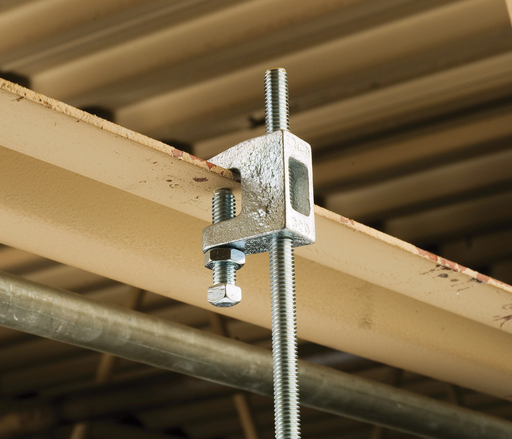

Reversible beam clamp for use with standard flange widths. Electrogalvanized, 3/8" rod, 19.1 mm max flange.

Technical Information

Applications
Datacom and Low Voltage, Electrical, Fire Sprinkler, HVAC, Plumbing and Refrigeration
Bolt Size
3/8 in
Capacity
13/16 in
Load Capacity
500 lb Top, 250 lb Bottom
Material
Steel
Standard
CULus®
Torque Rating
5 ft-lb
Type
Universal

Manufacturer Information

Brand
nVent Caddy
Sub Brand
CADDY

General Product Info

12-Digit UPC
782856339762
Finish
Electro Galvanized
Product UPC
78285633976
Weight
0.14 kg
Certifications
  • cUL ULC/ORD-C203
  • UL ANSI/UL 203
  • FM Approved, Pipe Hanger Components FM 1951, 1952, 1953 (December 2016)
Features
  • Conforms with Federal Specification WW-H-171 (Type 23), Manufacturers Standardization Society (MSS) SP-58 (Type 19 and 23)
