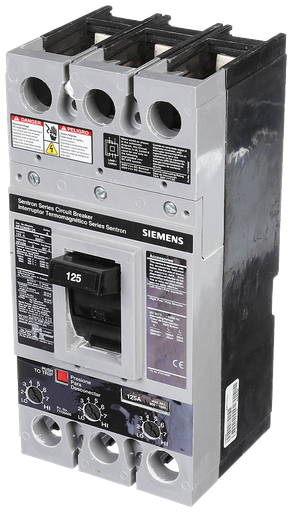

Siemens HFXD63B125 BRKR HFD6 3P 600V 12

Manufacturer: Siemens | Catalog # HFXD63B125 | Codale Part # 1819042
$8,578.54/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER FD FRAME WITH HIGH BREAKING CAPACITY. 125A 3-POLE (25KAIC AT 600V) (65KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES: NO LUGS INSTALLED. DIMENSIONS (W x H x D) IN: 4.50 x 9.5 x 4.00.

Technical Information

Actuator
Varying
Amperage
125 Amp
Applications
Standard 40C Breaker
Enclosure
Varying
Frame
FD
Frequency
50/60 Hz
Interrupt Rating
25 kAIC
Load Rating
N/A
Number of Poles
3 Pole
Operating Temperature
40C
Standard
HACR
Tc Connection
N/A
Trip Range
800-1500
Trip Type
Thermal-Magnetic
Type
HFXD6
Voltage
600 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
783643318472
Product UPC
78364331847
Weight
8.950 lb

Dimensions

Height
5.3 Inch
Length
11.2 Inch
Width
7.000 in

Certifications and Compliance

Country of Origin
Mexico
