Milwaukee 48-20-3944 7/8" x 13" (8" Drilling Depth) 4-Cutter Rotary Hammer Drill Bit, Carbide, SDS-Max

Manufacturer: Milwaukee Tool | Catalog # 48-20-3944 | Codale Part # 1850075

$43.78/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.

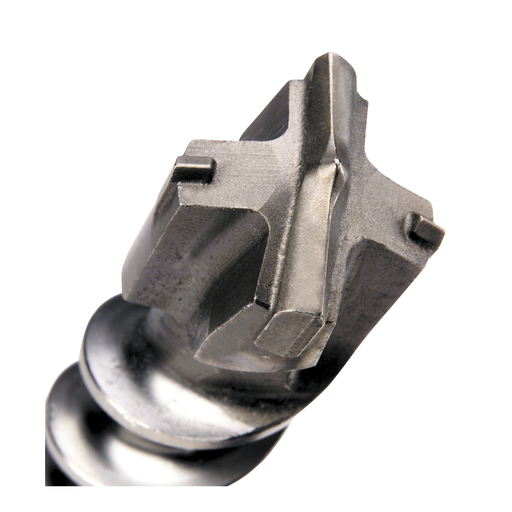

SDS max Carbide bits feature the SDS max drive system for fast bit changes and efficient power transfer from the hammer to the bit. Bits over 9/16 in. (5/8 in.)feature the highest quality Carbide and provide two extra Carbide nibs resulting in four cutting edges. These four cutting edges increase the drilling speed by pulverizing more concrete. They also provide a rounder hole than two cutter bits. The flutes provide a fast deep means of clearing concrete dust from deep holes speeding up drill rates. Use only in SDS max drive hammers. SDS max bits also available in metric sizes. One per package.

Technical Information

Applications
For Concrete, Stone, Masonry, Fast Bit Changes and Efficient Power Transfer from Hammer to Bit
Bit Type
Percussion
Cutting Depth
8 in
Material
Carbide
Shank Type
SDS-Max
Size
7/8 in
Style
SDS-MAX
Type
4-Cutter Head

Packaging

Pkg Qty
1 Pack

Manufacturer Information

Brand
Milwaukee Tool
Sub Brand
MX4™

General Product Info

12-Digit UPC
045242102174
Product UPC
04524210217
Weight
1.3000 lb

Dimensions

Diameter
7/8 Inch
Flute Length
11.0 in
Height
7/8 Inch
Length
13 Inch
Overall Length
13 in
Shank Diameter
2.0 in
Width
7/8 in
Features
  • 7/8 in. diameter, 4-cutter head
  • SDS-Max shank
  • Drilling depth 8 in.
  • Overall length 13 in.
