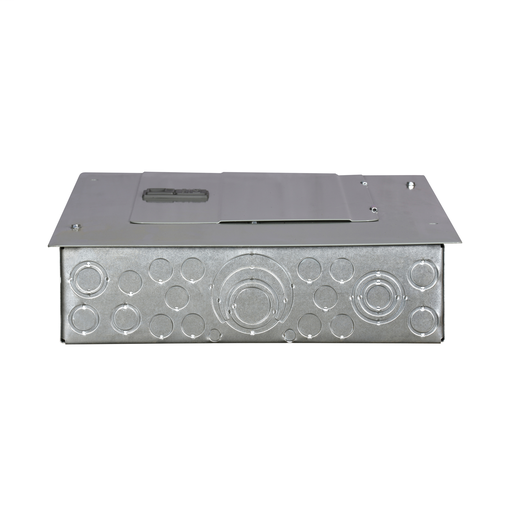

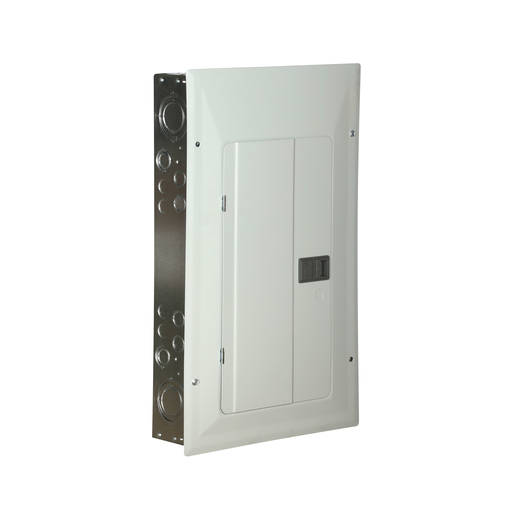

Product image for Eaton Electrical BR2040L200G 120/240 VAC 20-40 CIRCUIT 200 Amp 1-Phase 3-Wire 1 Inch Main Lug Load Center
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Eaton Electrical BR2040L200G 120/240 VAC 20-40 CIRCUIT 200 Amp 1-Phase 3-Wire 1 Inch Main Lug Load Center

Manufacturer: Eaton Cutler-Hammer | Catalog # BR2040L200G | Codale Part # 1869420
$314.40/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
BR style 1-inch loadcenter, main lug, ground bar, includes BREQS125 hold-down screw, 200A, single-phase, 40-pole, 40 circuits, 20 spaces, 120/240V, #1-300 kcmil Cu/Al at 60.C or 75.C wire, NEMA 1 enclosure, c2 box size

Technical Information

Amperage
200 Amp
Bus Material
Aluminum
Conductor Size
1 AWG
Cover Type
Cover included
Enclosure
NEMA 1
Enclosure Material
Metal
Interrupt Rating
25 kAIC
Mounting Type
Combination
NEMA Size
1
Number of Circuits
40
Number of Phases
1 Phase
Number of Spaces
20
Number of Wires
3 Wire
Size
C2
Type
Main Lug
Voltage
120/240 Volt
Wire Size
1 AWG

Manufacturer Information

Brand
Eaton

General Product Info

12-Digit UPC
786676003490
Product UPC
78667600349
Weight
22.4000 lb

Dimensions

Height
23 Inch
Length
3.88 Inch
Width
14.31 in
Certifications
  • UL 50
  • UL 67
Warranties
  • 10 year
