Intermatic WP1110C 1-Gang Receptacle In-Use Cover, Horizontal / Vertical, 3-5/8" Deep - Clear

Manufacturer: Intermatic | Catalog # WP1110C | Codale Part # 1929327
$20.48/ea
ea
Log in or register to view your price, purchase history, and more!
69 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet

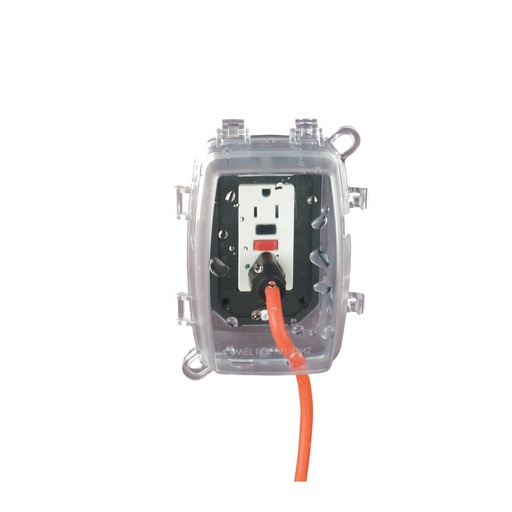

Plastic In-Use Weatherproof Covers are easy to install and include adhered gasket, mounting screws, base, cover assembly, and inserts to meet the needs of a variety of applications.

Technical Information

Applications
Residential, Industrial, Sports Fields, Commercial, Agricultural, Signage, Schools
Cable Size
(2) 14 Gauge, (1) 12 Gauge
Enclosure Rating
3R
Enclosure Type
NEMA 3R
Gang Type
Single
Insulation Material
Neoprene Gasket
Insulation Type
Neoprene Gasket
Material
Polycarbonate
Mounting Type
Vertical/Horizontal, Screw
Number of Gangs
1 Gang
Number of Outlets
1
Size
3-5/8 DEPTH IN, 92.07 DEPTH MM
Standard
2008 NEC Article 406.8,2011 NEC Article 406.9 (B1),UL/CSA Cold Impact Testing
Type
Rectangular, Receptacle, Lockable

Manufacturer Information

Brand
Intermatic

General Product Info

12-Digit UPC
078275072824
Color
Clear White
Construction
Heavy-Duty Polycarbonate
Construction Features
Heavy-Duty Polycarbonate
Product UPC
07827507282
Shape
Rectangle
Weight
0.4700 lb

Dimensions

Depth
92.075 mm
Height
5-3/4 Inch
Warranty Length
1 yr
Width
4 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Complies with 2020 NEC Article 314.15 for damp and wet locations
  • UL Certified for Type 3R outdoor enclosures
  • Meets requirements for cold impact testing: -60° F (-51° C)
  • Heavy-duty UV stabilized polycarbonate cover, mounting base and inserts
  • 1?8\" (3 mm) thick, pre-adhered neoprene gasket with slits for mounting screws
  • Lockable hasp: All models accept up to 1?4\" (6 mm) dia shank, except WP3100C & WP3103C accept up to 1?8\" (3 mm) dia shank
  • Three inserts provided with all models that allow each model to meet multiple installations (up to 16 configurations)
  • Max cord size: (2) #14 AWG or (1) #12 AWG
  • Mounts vertically or horizontally
  • Warranty: 1-year limited
