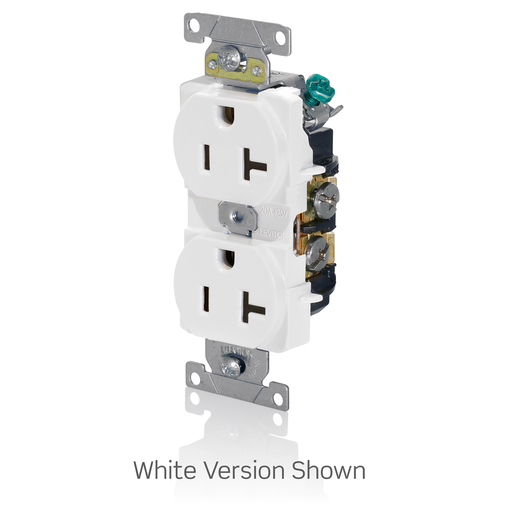

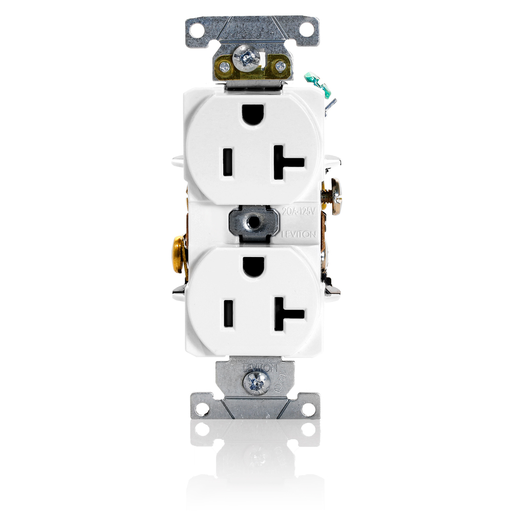

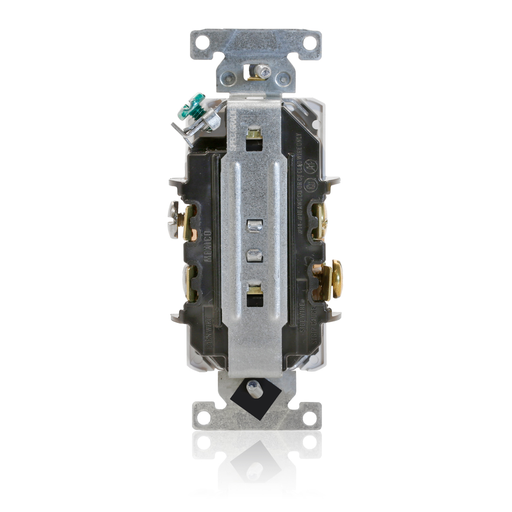

Leviton 5362-SW 20amp White Industrial Grade Duplex Receptacle

Manufacturer: Leviton | Catalog # 5362-SW | Codale Part # 1983168
$7.68/ea
ea
Log in or register to view your price, purchase history, and more!
191 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
20-Amp, 125 Volt, Industrial Heavy Duty Grade, Duplex Receptacle, Straight Blade, Self Grounding, Contractor Pack, White

Technical Information

Amperage
20 Amp
Applications
Commercial
Body Material
PBT
Conductor Size
14-10 AWG
Connection Type
Back and Side Wire
Dielectric
2000 V
Dielectric Strength
2000 V
Enclosure
WD-6
Face Material
PBT
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial
Grounding
Self-Grounding
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Wall Box
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
46 H x 1.33 W x 19 D IN
Standard
ANSI C-73
Tc Connection
Back & Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Torque
14 lb-in
Type
Duplex Outlet,Straight Blade
Voltage
125 Volt
Wire Count
3
Wire Size
14-10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Industrial Receptacles

General Product Info

12-Digit UPC
078477141151
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Product UPC
07847714115
Weight
0.1950 lb

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
Features
  • Levitons line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
Patents
  • MX321216
  • US8684771
