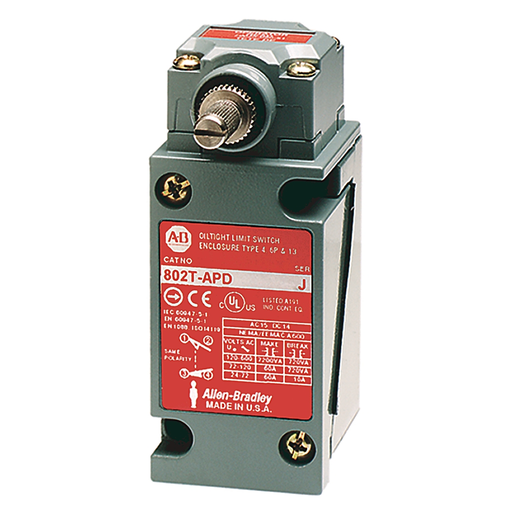

Product image for Allen Bradley 802T-APD Plug-In Oiltight Limit Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Allen Bradley 802T-APD Plug-In Oiltight Limit Switch

Manufacturer: Allen Bradley / Rockwell | Catalog # 802T-APD | Codale Part # 2091474
$234.82/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Metal Plug-In Oiltight Limit Switch

Technical Information

Action
Contact Op - Not Applicable,Low Energy, 24V DC @ 1.1A
Actuator
Rotary Lever Arm
Amperage
6 Amp at 125 VAC, 3 Amp at 230 VAC, 2.2 Amp at 125 VDC, 1.1 Amp at 230 VDC, 10 Amp Standard Energy
Applications
Full Switch (Head & Body)
Connection Type
Plug-In
Contact Configuration
1 NO, 1 NC, 1 Auxiliary
Contact Rating
A600,AC-15,Q300,DC-13
Enclosure
Metal
Material
Metal
Mounting Type
Horizontal, Standard
Number of Circuits
2
Number of Poles
No Normally Closed Contacts,No Normally Open Contacts
Operating Temperature
-18 degrees C
Size
802T Plug-in Style
Standard
CCC,CE,CSA,KC,UL
Tc Connection
Conduit Entry
Temperature Rating
-18 to 110 degrees C
Type
Oiltight
Voltage
10 A Standard Energy

Manufacturer Information

Brand
Allen-Bradley

General Product Info

12-Digit UPC
611320167900
Product UPC
61132016790
Weight
1.3400 lb
Features
  • Optimized for low energy use
  • Connect directly to PLC input
  • Rugged construction
  • Rugged metal construction
  • Alternative to oversized power contacts
  • Snap acting contacts
  • Plug-in design
  • Direct opening action
  • Long life and reliability
  • Alternative to glass-enclosed reed switches or solid state devices
  • Suitable for machine connectivity and low-voltage circuits
  • Front mount for simplified mounting
  • Proven reliability
  • NEMA 6P/IP67 sealing
