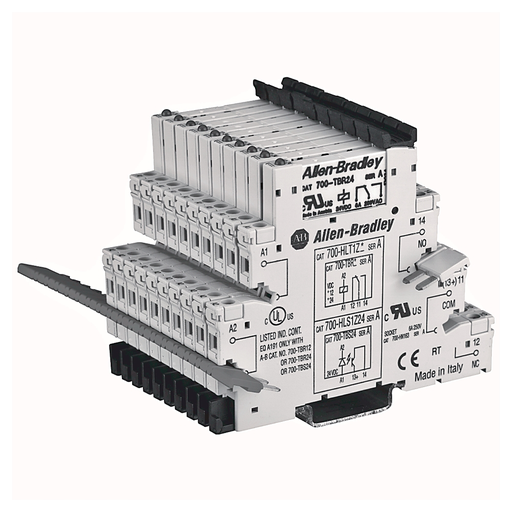

Product image for Allen Bradley 700-HLS1L1 120 VAC/125 VDC 2 Amp 1NO Screw Terminal Interposing/Isolation Relay
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Allen Bradley 700-HLS1L1 120 VAC/125 VDC 2 Amp 1NO Screw Terminal Interposing/Isolation Relay

Manufacturer: Allen Bradley / Rockwell | Catalog # 700-HLS1L1 | Codale Part # 2171615
$76.13/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
GP Terminal Block Relay

Technical Information

Amperage
2 Amp
Applications
Solid State Relay Output
Coil Voltage
120 V
Connection Type
Screw Terminals
Contact Configuration
SSR, 6mm DC OUTPUT
Contact Type
Standard Silver Contacts
Standard
CE,CUL,MARINE,UL
Tc Connection
Screw Terminals
Type
GP Terminal Block Relay
Voltage
125 VDC, 120 VAC at 50/60 Hz

Manufacturer Information

Brand
Allen-Bradley

General Product Info

12-Digit UPC
611320533347
Product UPC
61132053334
Weight
0.0790 lb
Features
  • Includes standard status indicator, reverse polarity protection and surge protection
  • Includes screw terminal bases
  • Includes relay and socket assembled interface modules for high density interposing or isolation applications
  • Offers timing range from 0.1 sec...6 hr
  • Provides standard status indicator, reverse polarity protection, and surge protection
  • Offers leakage current suppression version
  • Provides four timing functions
  • Includes SPDT (relay)
  • Provides built-in retainer clip and snap-in marker lever
  • Includes externally replaceable relay modules
  • Offers externally replaceable relay modules
  • Includes built-in retainer clip and snap-in marker lever
  • Includes screw-type and spring-clamp terminal bases
