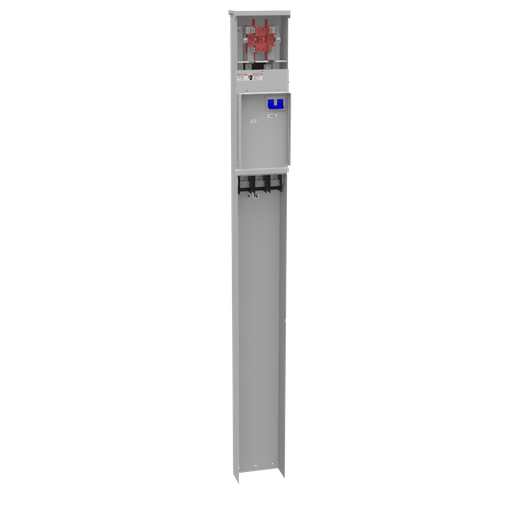

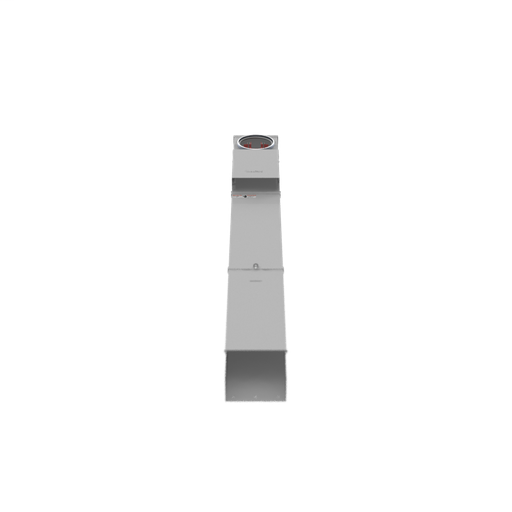

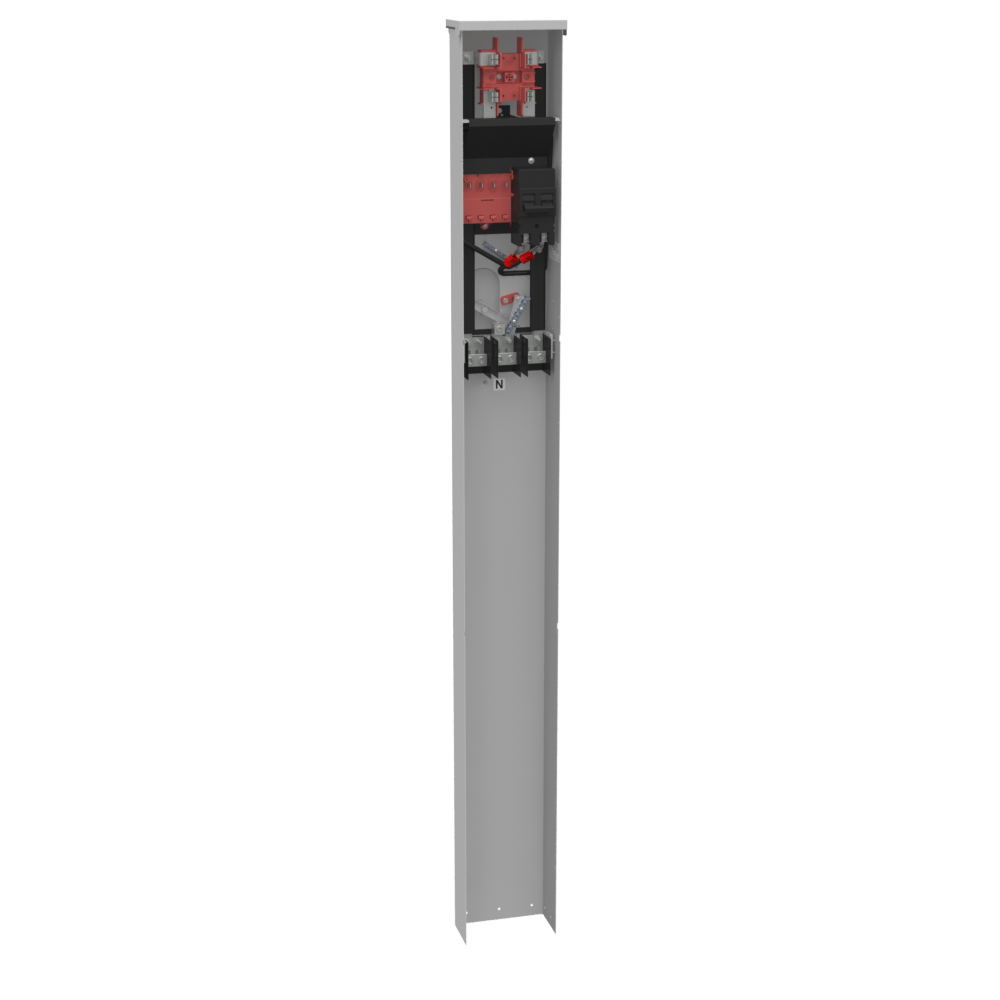

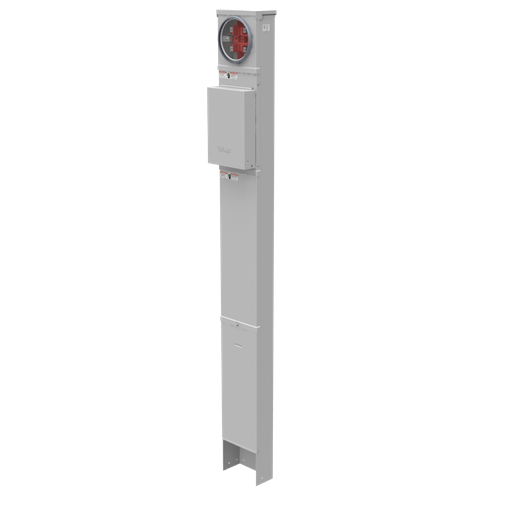

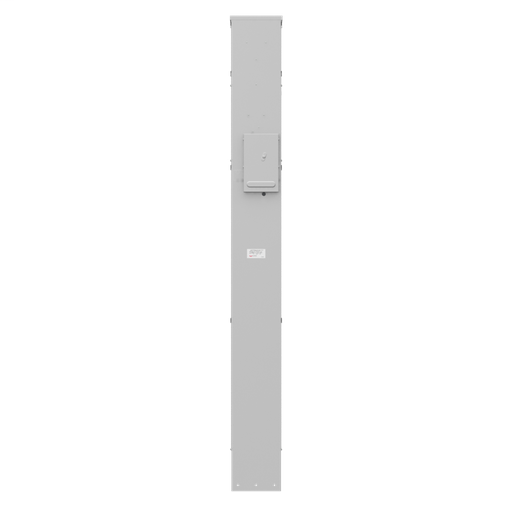

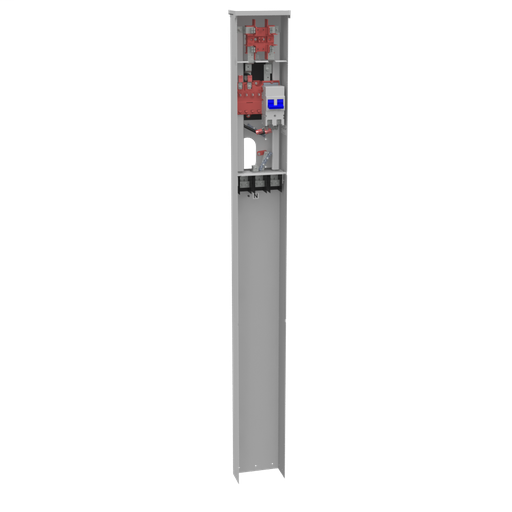

Product image for Milbank MPAP-100-MB-78 4 Terminal Ring Type Plain Top 1-100 Ampere Main Breaker Single Pedestal Direct Bury Series Wired Large Frame Breaker
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Image thumbnail 10
Image thumbnail 11
Image thumbnail 12
Image thumbnail 13
Email

Milbank MPAP-100-MB-78 4 Terminal Ring Type Plain Top 1-100 Ampere Main Breaker Single Pedestal Direct Bury Series Wired Large Frame Breaker

Manufacturer: Milbank | Catalog # MPAP-100-MB-78 | Codale Part # 2190998
$1,121.87/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
4 TERM RNGTP PLAIN TOP 1-100 AMP MN BRKR SGL PED DIR BURY SERIES WIRED LARGE FRAME BRKR

Technical Information

Amperage
200 Amp
Applications
Mobile Home Power
Cable Entry
Underground
Enclosure
G90 Galvanized Steel With Powder Coat Finish,Type 3R
Frequency
60 Hz
Insulation Type
Fiberglass With Resin
Material
Steel
Mounting Type
Pedestal
Number of Phases
1 Phase
Number of Terminations
4
Size
4L x 8.156W x 78H
Standard
Type 3R,UL Listed
Terminal Type
Double Mechanical
Type
Ring Type Meter Socket
Voltage
240 Volt

Manufacturer Information

Brand
Milbank Manufacturing

General Product Info

12-Digit UPC
784572172050
Hub Style
Plain Top
Product UPC
78457217205

Dimensions

Height
78 Inch
Length
4 Inch
Width
8.156 in
