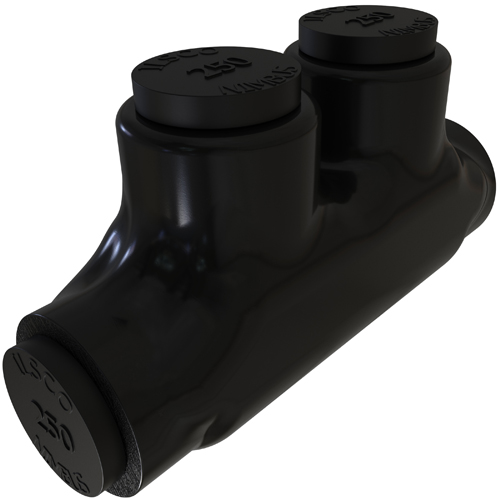

Ilsco PBT-250 Nimbus Insulated Aluminum In-Line Splicer-Reducer Connector, Conductor Range 250-6, 2 Ports, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # PBT-250 | Codale Part # 2202786
$47.98/ea
ea
Log in or register to view your price, purchase history, and more!
12 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
Nimbus Insulated in-line splicer-reducer connectors, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 250 kcmil - 6 Str, Contains DE-OX®, 2 conductors, 2 ports/wireways, Plastisol insulation, Drive Type Main 5/16 Internal Hex, rated for 600 V, primary color Black, 1 poles,

Technical Information

Amperage
290 Amp
Applications
Insulated Butt Splice
Conductor Material
Aluminum,Copper
Conductor Size
6 AWG-250 kcmil
Conductor Type
Stranded
Connection Type
Mechanical
Material
Aluminum/Copper/Plastisol
Number of Conductors
2
Number of Ports
2
Standard
CSA,E2186,UL
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
Insulated
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Nimbus®

General Product Info

12-Digit UPC
783669077025
Color
Black
Environmental Conditions
Cold temperature rated to -45C
Finish
Tin Plated
Product UPC
78366907702
Weight
0.559 lb

Dimensions

Height
2.041 Inch
Length
3.88 Inch
Width
1.187 in
