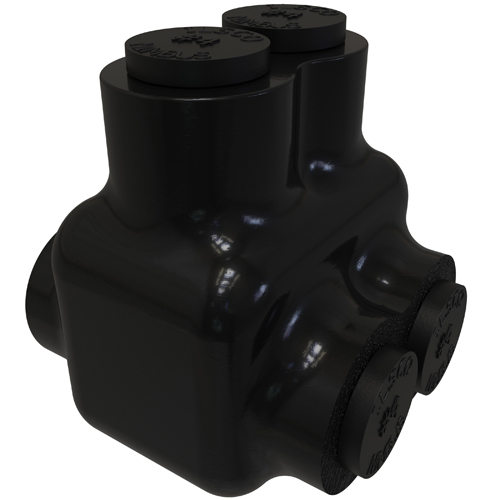

Ilsco PBTD-2-4 Nimbus Insulated Aluminum Multi-Tap Connector, Conductor Range 4-14, 2 Ports, Dual Sided Entry, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # PBTD-2-4 | Codale Part # 2202789
$41.07/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Nimbus Insulated Multi-Tap Connector, Dual Sided Entry, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 4 Str - 14 Str and 10 Sol - 14 Sol, Contains DE-OX®, 2 conductors, 2 ports/wireways, Plastisol insulation, Drive Type Main 1/8 Internal Hex, rated for 600 V, primary color Black, 1 poles,

Technical Information

Amperage
95 Amp
Applications
Insulated Multi-Tap Connector, Dual Sided Entry
Conductor Material
Aluminum,Copper
Conductor Size
14-10 AWG
Conductor Type
Aluminum/Copper
Connection Type
Mechanical
Material
Aluminum
Number of Conductors
2
Number of Ports
2
Standard
CSA,E2186,UL
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
Two Side
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Nimbus®

General Product Info

12-Digit UPC
783669077100
Color
Black
Environmental Conditions
Cold temperature rated to -45C
Finish
Tin Plated
Product UPC
78366907710
Weight
0.08 lb

Dimensions

Height
1.415 Inch
Length
1.24 Inch
Width
1.394 in
