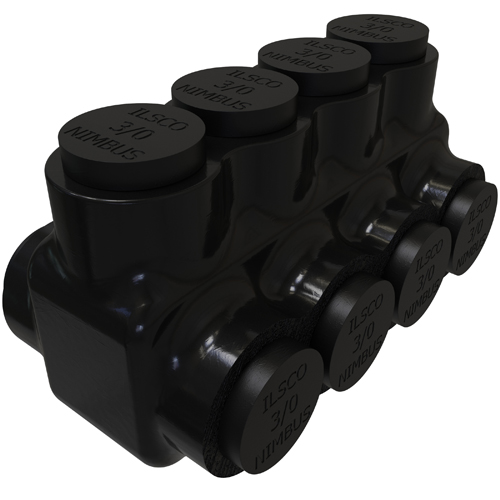

Product image for Ilsco PBTD-4-3/0 Nimbus Insulated Aluminum Multi-Tap Connector, Conductor Range 3/0-6, 4 Ports, Dual Sided Entry, Tin Plated, UL, CSA
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Ilsco PBTD-4-3/0 Nimbus Insulated Aluminum Multi-Tap Connector, Conductor Range 3/0-6, 4 Ports, Dual Sided Entry, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # PBTD-4-3/0 | Codale Part # 2202817
$94.86/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Nimbus Insulated Multi-Tap Connector, Dual Sided Entry, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector, UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 3/0 Str - 6 Str, Contains DE-OX®, 4 conductors, 4 ports/wireways, Plastisol insulation, Drive Type Main 1/4 Internal Hex, rated for 600 V, primary color Black, 1 poles,

Technical Information

Amperage
225 Amp
Applications
Insulated Multi-Tap Connector, Dual Sided Entry
Conductor Material
Aluminum,Copper
Conductor Type
Stranded
Connection Type
Mechanical
Material
Aluminum
Number of Conductors
4
Number of Ports
4
Standard
CSA,E2186,UL
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
Two Side, PBTD, Insulated
Voltage
600 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
Nimbus®

General Product Info

12-Digit UPC
783669077667
Color
Black
Environmental Conditions
Cold temperature rated to -45C
Finish
Tin Plated
Product UPC
78366907766
Weight
0.407 lb

Dimensions

Height
1.863 Inch
Length
3.346 Inch
Width
1.965 in
