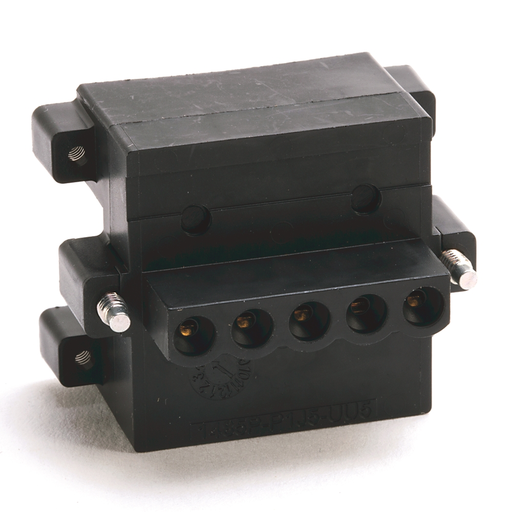

Product image for Allen-Bradley 1485P-P1J5-UU5 Devicenet Media Female Adaptor
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Allen-Bradley 1485P-P1J5-UU5 Devicenet Media Female Adaptor

Manufacturer: Allen Bradley / Rockwell | Catalog # 1485P-P1J5-UU5 | Codale Part # 2216768
$58.23/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
1485P DeviceNet Media Female Adapt

Technical Information

Amperage
8 Amp
Applications
1485P DeviceNet Media, open-style to two open-style Female y-adaptors
Cable Size
2622 AWG
Conductor Size
26-22 AWG
Connection Type
Retaining Screws
Enclosure
IP 20
Material
Nylon
Operating Temperature
167 degrees F
Standard
CUL,KC,UL
Tc Connection
Retaining Screw
Temperature Rating
-25 to 75 degrees C
Type
Round Media, 1-Port, Open-Style, Female
Voltage
24 Volt

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
DeviceNet™

General Product Info

12-Digit UPC
662073011620
Product UPC
66207301162
Used With
1485P DeviceNet Media System
Weight
0.0300 lb
Features
  • Watertight connections (NEMA 4, 6P; IP 67)
  • Gold plated contacts
  • Many end devices, including Rockwell Automation® hardened I/O products, use a different pin numbering convention for 4-pin mini connections than that used on physical media products
  • Highly pliable polyvinylchloride (PVC) jacket material
  • Physical key to ensure proper connection alignment
  • Can provide power through only one pair of the four available contacts, so the other available pair can be used for single channel E-stop
  • E-stop T-ports and shorting plugs are red for easy identification
  • Ratcheting coupling nut resists vibration
  • Polyvinylchloride (PVC) jacket resists oil and chemicals
  • Both conventions have the same color code going to the same spot but they use a different pin numbering designation
  • Sized to fit inside 1-in. conduit
