3M T/R+JUG Tan/Red Performance Plus™ Wire Connector (Jug of 750)

Manufacturer: 3M | Catalog # 7010401052 | Codale Part # 2232130
$0.28/ea
ea
Order in multiples of 750 (pack qty)
Log in or register to view your price, purchase history, and more!
84,750 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page
3M™ Performance Plus™ Wire Connectors are designed with a uniquely flexible spring that has generous room for expansion and a strong bite for a secure connection. Because of their increased wire range, just three Performance Plus wire connectors handle the work of eight standard connectors. And the flexible skirt helps prevent copper exposure for enhanced safety.

Technical Information

Applications
Used to Electrically Connect Two or more Conductor Ends in A Pigtail Application and Insulate the Connection, for Residential Wiring Job and Wide Range Applications

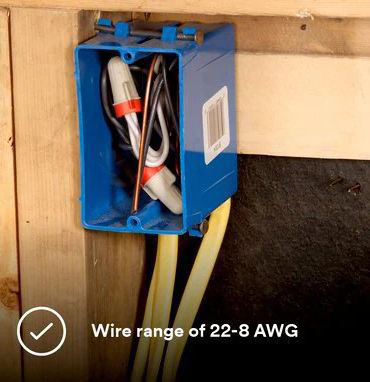

Conductor Size
22-8 AWG
Connection Type
Wire
Contact Material
Spring Steel
Flame Retardant
Yes
Insulation Material
Polypropylene, Thermoplastic Elastomer
Material
Plastic
Max Operating Temperature
105.0 degrees C
Max Voltage
1000 V
Tc Connection
Twist On
Temperature Rating
105 degrees C
Type
Fully Insulated, Wing, Straight Angled, Standard, Flame-Retardant
Voltage
1000 Volt

Manufacturer Information

Brand
3M
Sub Brand
Performance Plus™

General Product Info

12-Digit UPC
051128544556
Color
Red
Product Type
Connector
Product UPC
05112854455
Weight
5.6500 lb

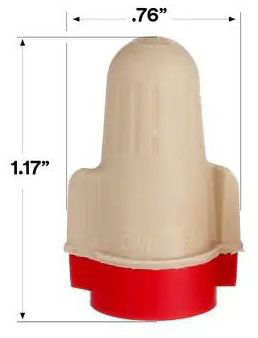

Dimensions

Diameter
0.76 Inch
Length
1.17 Inch

Certifications and Compliance

Country of Origin
USA
Features
  • Strong bite for a secure, reliable connection
  • Flexible spring expands for greater wire range and reuse
  • Dual color coded: one connector does the job of two traditional connectors in the majority of applications
  • UL Listed
