Hubbell 5362-W White 20A 125V Duplex Receptacle - Finder Groove Face. Heavy Duty Industrial Series

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # 5362W | Codale Part # 2270392
$7.74/ea
ea
Log in or register to view your price, purchase history, and more!
6 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page
Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, White

Technical Information

Amperage
20 Amp
Applications
Hubbell-Pro Heavy Duty
Base Material
PBT
Conductor Size
14-12 AWG
Connection Type
Back and Side Wire
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Industrial
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire Grounding
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA 22.2,Fed. Spec. W-C-596,NEMA® WD-6,No. 42 File 285,UL File No. E2186
Style
Finder Groove Face
Tc Connection
Back and Side Wired
Temperature Rating
Maximum continuous 75?degrees C; minimum -40?degrees C (w/o impact)
Type
Heavy Duty
Voltage
125 Volt
Wattage
2000 Watt
Wire Count
3
Wire Size
12-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Hubbell Pro™

General Product Info

12-Digit UPC
783585835013
Color
White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Finish
Smooth
Product Series
Hubbell-PRO
Product UPC
78358583501
Weight
0.2 lb

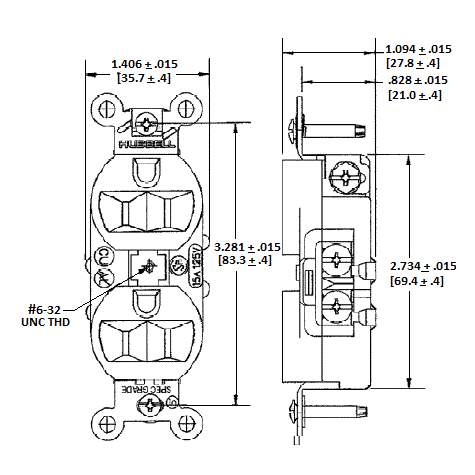

Dimensions

Height
1.09 Inch
Length
3.28 Inch
Width
1.41 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Slender/compact design
  • Finder Groove Face
  • Triple wipe contacts
Performance
  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 V-2
  • Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only
  • Mechanical - Terminal Identification - Terminal wire leads identified in accordance with UL 498
Industry Standard(s)
  • Certified to CSA 22.2, No. 42
  • Fed. Spec. W-C-596
  • NEMA® WD-6 Compliant
  • UL Listed to UL498 File No. E2186
