LEV 5G110-RW5 EXTREME CAT 5E UTP JA

Manufacturer: Leviton | Catalog # 5G110-RW5 | Codale Part # 2274434
$12.00/ea
ea
Log in or register to view your price, purchase history, and more!
108 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet

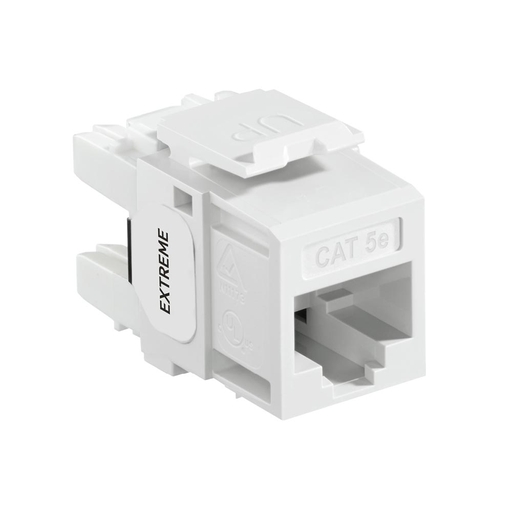

The EXTREME Category 5e Component-Rated UTP Copper Jack is designed to be used with all Leviton QUICKPORT compatible products. The jack includes patented Retention Force Technology™ which promotes consistent performance over the life of the system. It includes unique pair separation towers allowing for quicker and easier terminations. The jack is in a 180-degree configuration with the punch field in the back, allowing for rear termination

Technical Information

Applications
Commercial
Body Material
High-Impact Fire-Retardant Plastic
Cable Size
26 - 22 AWG
Cable Type
Category 5E
Category Type
Cat 5e
Contact Material
High Quality Copper-based Alloy Plated With 50 Micro-inches Of Gold Over 100 Micro-inches Of Nickel,High Quality Copper-based Alloy Plated With 50 Micro-inches Of Gold Over 100 Micro-inches Of Nickel
Contact Type
8P8C
Flamability Class
Rated V-0 Per UL 94
Material
Copper
Mounting Type
Wallplate, Panel
Number of Positions
8
Size
0.89 H x 0.64 W x 1.21 D IN
Standard
EIA,TIA,cULus Listed
Style
EXtreme
Type
RJ45

Manufacturer Information

Brand
Leviton
Sub Brand
GigaMax®, QuickPort

General Product Info

12-Digit UPC
078477177013
Color
White
Environmental Conditions
UL 94 Requirements, V0 Rated Flammability
Finish
Gold
Product UPC
07847717701
Used With
Round Cables
Weight
0.0200 lb

Certifications and Compliance

Country of Origin
USA
Features
  • Terminates 26- and 22- AWG solid conductors
  • Capable of multiple re-terminations
  • Gas-tight IDC connectors prevent corrosion
  • Easy to read wiring label simplifies punchdown
  • Patented Retention Force Technology protects tines from damage and increases system longevity
  • Pair Separation Tower design facilitates separation of conductors and minimizes untwisting
  • 180-degree configuration allows for rear termination
  • Available in 13 ANSI/TIA-606-C compatible colors for color coding or organization
  • Available individually, in bulk packages of 25, and in bulk packages of 150 with a JackRapid™ Punchdown Tool
Patents
  • ECD000147723-0001
  • MX295578
  • US7547227
  • US7980890
