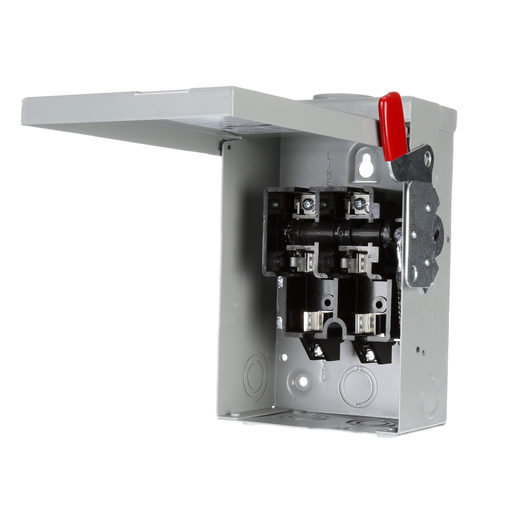

Siemens GF221NR 240 VAC/250 VDC 30 Amp 2-Pole NEMA 3R General Duty Fusible Safety Switch

Manufacturer: Siemens | Catalog # GF221NR | Codale Part # 22872
$102.53/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Siemens Low Voltage Circuit Protection General Duty Safety Switch. 2-Pole 2-Fuse and solid neutral Fused in a type 3R enclosure (outdoor). Rated 240VAC (30A). Horse power (Std, Time delay) fused 1-PH 2-W (1-1/2, 3), 3-PH 3-W (3, 7-1/2), 250VDC (5). Special features service entrance labeled suitable for 3-PH motor loads.

Technical Information

Action
SINGLE THROW
Actuator
SINGLETHROW
Ambient Temperature
-29 degrees C
Amperage
30 Amp
Applications
DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
Enclosure
NEMA3R
Frequency
60 Hz
Insulated?
No
Material
Steel
Mounting Type
2 or 3 Point Mounting Holes
NEMA Size
3
Net Weight
3,902 lb
Number of Poles
2 Pole
Operating Cycles
10k
Operating Temperature
-29 degrees C
Standard
UL
Tc Connection
MECHANICALLUGS
Type
GENERALDUTYSWITCH
Voltage
240 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
VBII

General Product Info

12-Digit UPC
783643335189
Product UPC
78364333518

Certifications and Compliance

Country of Origin
Mexico
