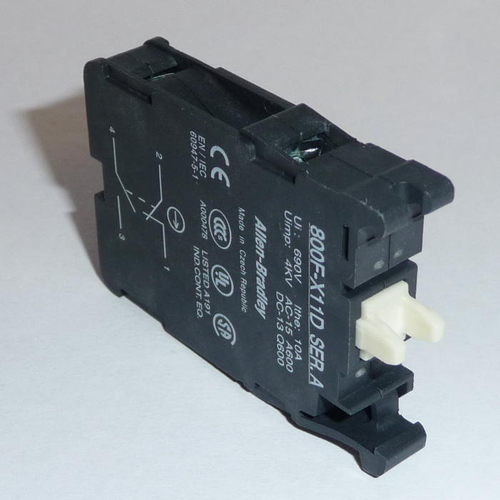

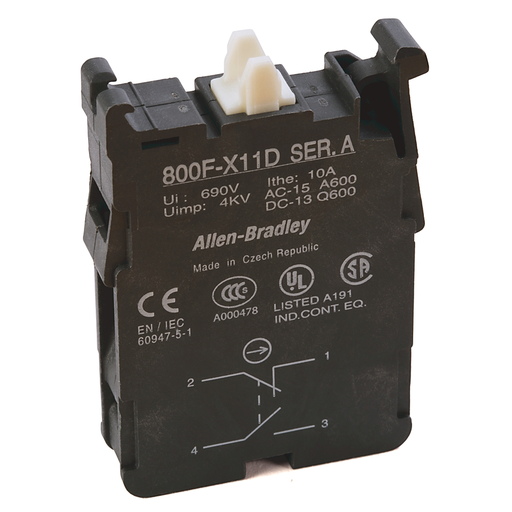

Product image for Allen-Bradley 800F-X11D 22.5 mm No Latch Screw Contact Block 1 N.O. 1 N.C. Double Circuit Push Button
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Allen-Bradley 800F-X11D 22.5 mm No Latch Screw Contact Block 1 N.O. 1 N.C. Double Circuit Push Button

Manufacturer: Allen Bradley / Rockwell | Catalog # 800F-X11D | Codale Part # 2287276
$35.90/ea
ea
Log in or register to view your price, purchase history, and more!
14 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
22mm Contact Block 800F PB

Technical Information

Amperage
0.005 Amp at 230 VAC-15
Connection Type
Screw Contact Block
Contact Configuration
1 NO, 1 NC
Mounting Type
Latch Mounting
Size
22 mm
Standard
CCC,CE,CSA,CUL,KC,MARINE,UL
Tc Connection
Screw Contact Block
Terminal Type
Screw
Type
22mm Contact Block

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
800F PB

General Product Info

12-Digit UPC
662468118965
Product UPC
66246811896
Used With
800F Push Button
Weight
0.0400 lb
Features
  • Bifurcated contact blocks
  • Color-coded contact block plungers
  • IP66, NEMA Type 4/4X/13
  • Finger-safe contact blocks
  • 30 x 40 mm mounting matrix
  • Buttons are flush-mounted with the enclosure to reduce accidental operation
  • Electrical and mechanical interlocks
  • One-hand latch removal
  • Uses standard Bulletin 800F extended push buttons
  • Integrated light indicator modules
  • Modular flexibility
