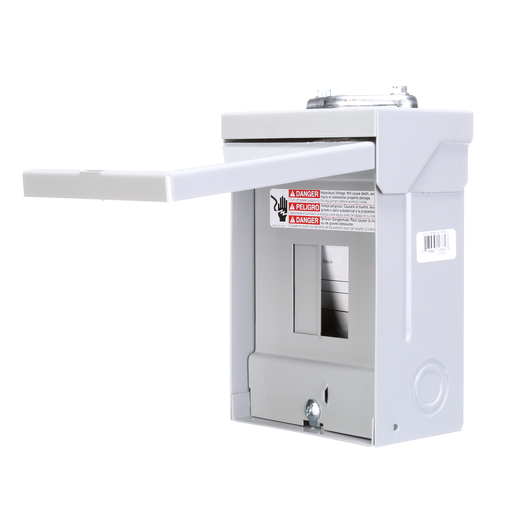

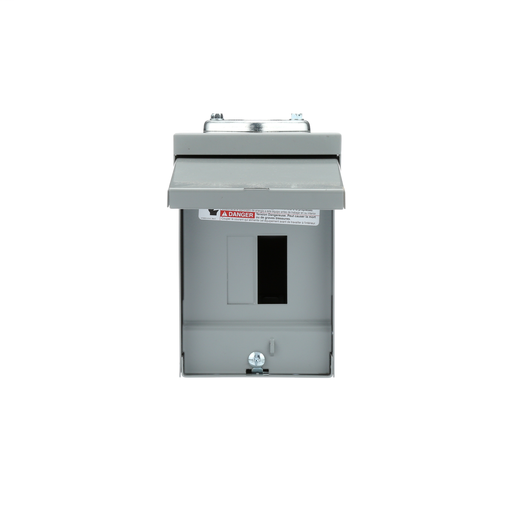

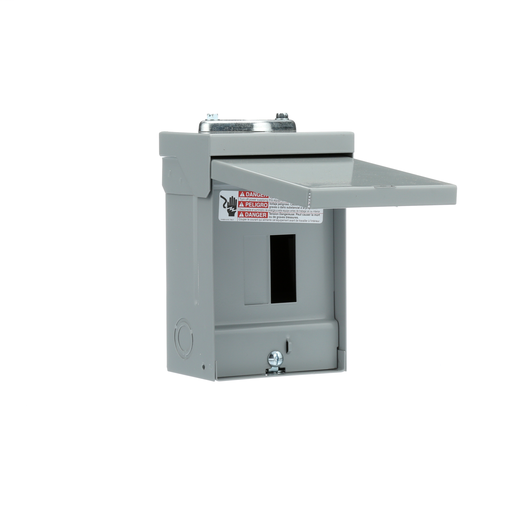

Siemens W0204ML1060 120/240 VAC 60 Amp 1-Phase 3-Wire NEMA 3R Main Lug Load Center

Manufacturer: Siemens | Catalog # W0204ML1060 | Codale Part # 22922
$103.53/ea
ea
Log in or register to view your price, purchase history, and more!
17 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
Main circuit breaker weatherproof enclosure consists of the enclosure for one breaker and cover suitable for service entrance or commercial disconnect. Available in version 1 phase 1 or 2 poles 240vac 15/125A type eemac3R. Made of cold rolled gauge steel finished with gray paint, they are certified listed CSA. Features: Outdoor EEMAC 3R enclosure. Accepts plug-in Q type breakers. One piece bus bar construction. Combination trim flush/surface.

Technical Information

Amperage
60 Amp
Applications
For Residential
Bus Rating
60 A
Cable Size
N/A
Circuit Breaker Type
N/A
Cover Type
N/A
Enclosure
OutdoorType3R
Enclosure Rating
3R
Enclosure Type
Type 3R Outdoor
Interrupt Rating
100 kAIC
Mounting Type
Surface
Number of Circuits
4
Number of Phases
1 Phase
Number of Poles
1 Pole
Number of Spaces
2
Size
1386.45
Type
EQ
Voltage
120 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
Load Centers

General Product Info

12-Digit UPC
783643123748
Construction
Steel Housing
Product UPC
78364312374
Weight
4.040 lb

Dimensions

Height
3.7 Inch
Length
7.65 Inch
Width
13.600 in

Certifications and Compliance

Country of Origin
Mexico
