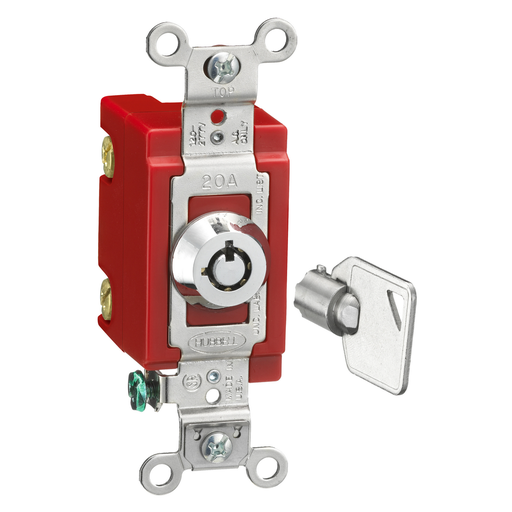

Product image for Hubbell HBL1221RKL 20 Amp 120/277 VAC 1-Pole Chrome Locking Toggle Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Email

Hubbell HBL1221RKL 20 Amp 120/277 VAC 1-Pole Chrome Locking Toggle Switch

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL1221RKL | Codale Part # 2316667
$219.39/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Switches and Lighting Controls, Industrial Grade, Barrel Key Locking Switch, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired, Chrome

Technical Information

Action
Snap, Off
Actuator
Cylindrical Key
Amperage
20 Amp
Applications
Single Pole
Conductor Size
14-10 AWG
Contact Configuration
2-Position
Contact Rating
Full Rated
Current
20 Amp
Enclosure
None
Grade
Industrial
Lock Type
Cylindrical
Material
Composite
Number of Poles
1 Pole
Operating Temperature
-40 degrees C
Size
Standard Product Size
Style
Single Pole
Switch Type
Single Pole
Tc Connection
Terminal Screws
Temperature Rating
-40 to 75 C
Type
General Purpose, 2 Position, Standard
Voltage
120-277 Volt
Wattage
5540 Watt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
AC Toggle Switches

General Product Info

12-Digit UPC
783585431574
Color
Chrome
Product Series
Extra Heavy Duty
Product UPC
78358543157
Weight
0.2 lb

Dimensions

Height
2.02 Inch
Length
4.06 Inch
Width
1.25 in

Certifications and Compliance

Country of Origin
USA
Features
  • Large brass binding head screws with deep slots
  • Lock circuits On or Off
  • Strip gauge for accurate wiring
