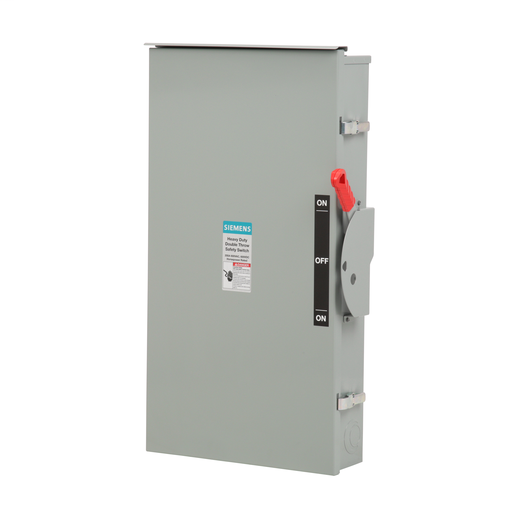

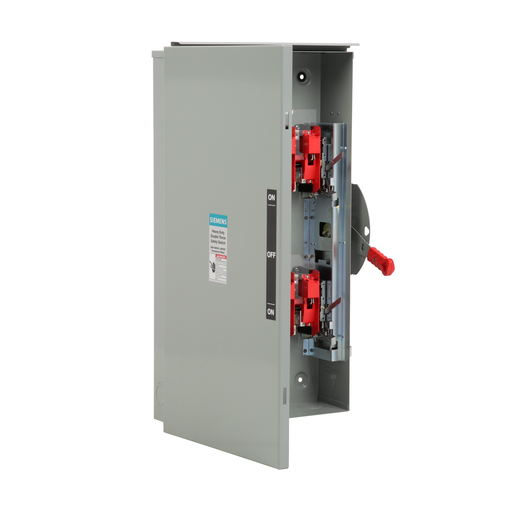

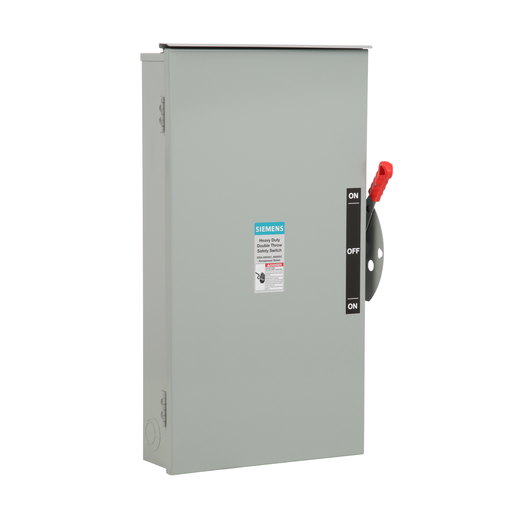

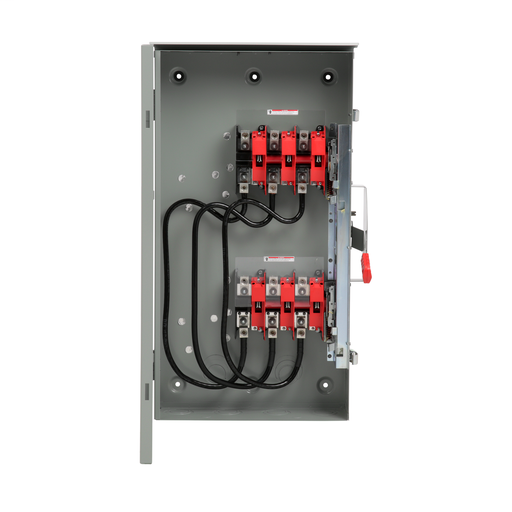

Product image for Siemens DTNF364R 600 VAC/250 VDC 200 Amp 3-Pole 3-Wire NEMA 3R Heavy Duty Non-Fusible Safety Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Email

Siemens DTNF364R 600 VAC/250 VDC 200 Amp 3-Pole 3-Wire NEMA 3R Heavy Duty Non-Fusible Safety Switch

Manufacturer: Siemens | Catalog # DTNF364R | Codale Part # 2350963
$4,578.14/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Siemens Low Voltage Circuit Protection Heavy Duty Safety Switches. 200A 3P 600V 3W NF DT TYPE 3R

Technical Information

Action
DOUBLE THROW
Actuator
DOUBLETHROW
Ambient Temperature
-29 C
Amperage
200 Amp
Applications
LOADTRANSFERBETWEENPOWERSOURCES
Connection Type
MECHANICAL LUGS
Enclosure
NEMA3R
Frequency
60 Hz
Insulated?
No
Material
Steel
Mounting Type
SURFACE
Number of Poles
3 Pole
Operating Cycles
8000
Operating Temperature
-29 degrees C
Tc Connection
MECHANICALLUGS
Type
DOUBLETHROWSWITCH
Voltage
600 Volt
Wattage
3 Watt

Manufacturer Information

Brand
Siemens
Sub Brand
VBII

General Product Info

12-Digit UPC
783643454347
Product UPC
78364345434
Weight
76.400 lb

Dimensions

Height
11.4 Inch
Length
40.9 Inch
Width
24.500 in

Certifications and Compliance

Country of Origin
Mexico
Compare
