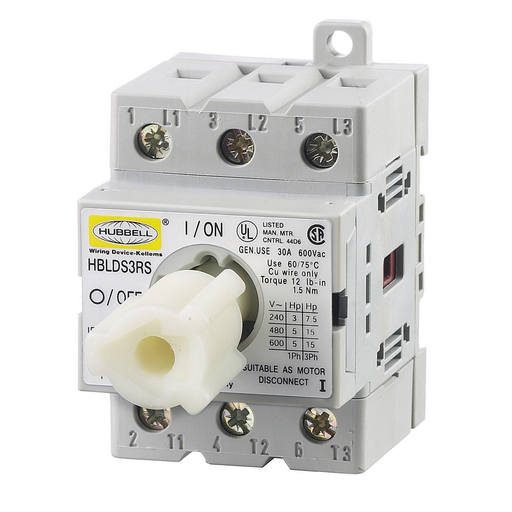

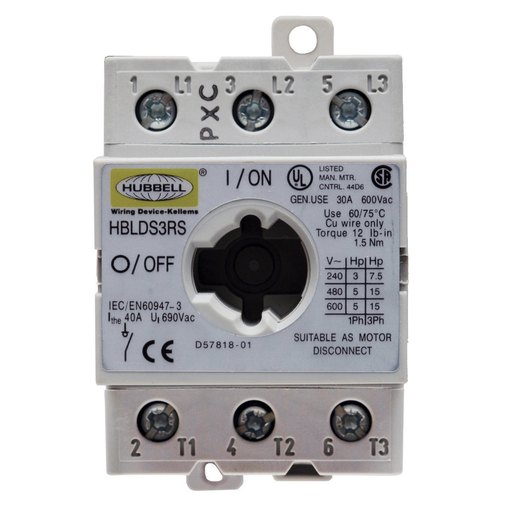

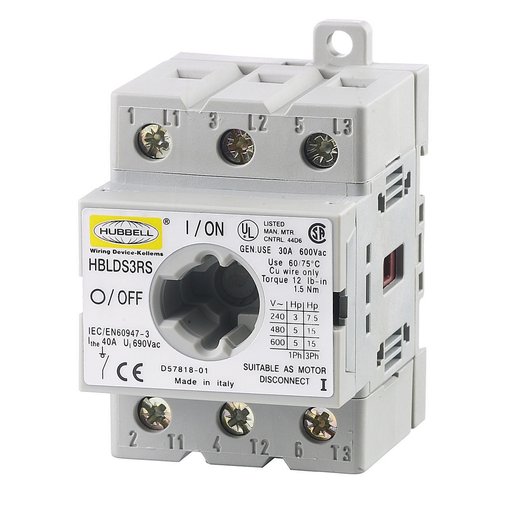

Hubbell HBLDS3RS Replacement Switch, Mechanical Interlock, 600V RMS Max

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBLDS3RS | Codale Part # 2352219
$213.36/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Switches and Lighting Controls, Industrial Grade, Disconnect Switches, Replacement Switch, Three Pole, For 30A Black.

Technical Information

Amperage
30 Amp
Applications
For 30A HBLDS3 Series
Connection Type
Screw Terminal
Contact Configuration
Two Position
Contact Rating
30A
Current
30 Amp
Number of Poles
3 Pole
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
4X,CSA,TYPE 12K Enclosure Rating,TYPE 4,UL Standard
Style
Replacement Switches
Tc Connection
Terminal Screws
Temperature Rating
-67 degrees C Maximum Continuous, -40 degrees C Minimum Continuous without Impact
Type
Standard, Replacement

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Circuit-Lock®

General Product Info

12-Digit UPC
783585955179
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Housing Material
Composite
Product Series
Non-Fused
Product UPC
78358595517
Weight
0.4 lb

Dimensions

Height
2.418 Inch
Length
3.978 Inch
Width
2.600 in

Certifications and Compliance

Country of Origin
Poland
Features
  • Industrial Grade
  • Disconnect Switches
  • Replacement Switch
  • Three Pole
