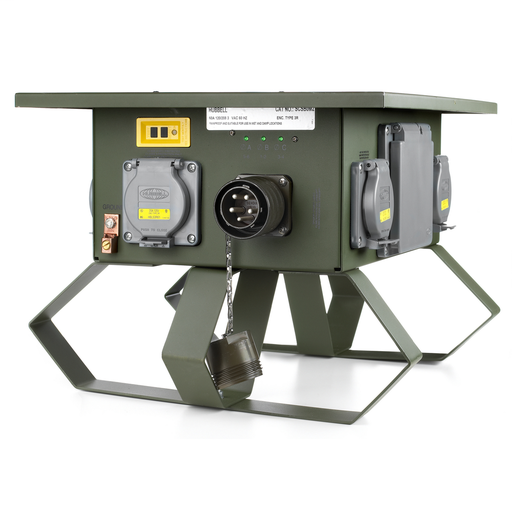

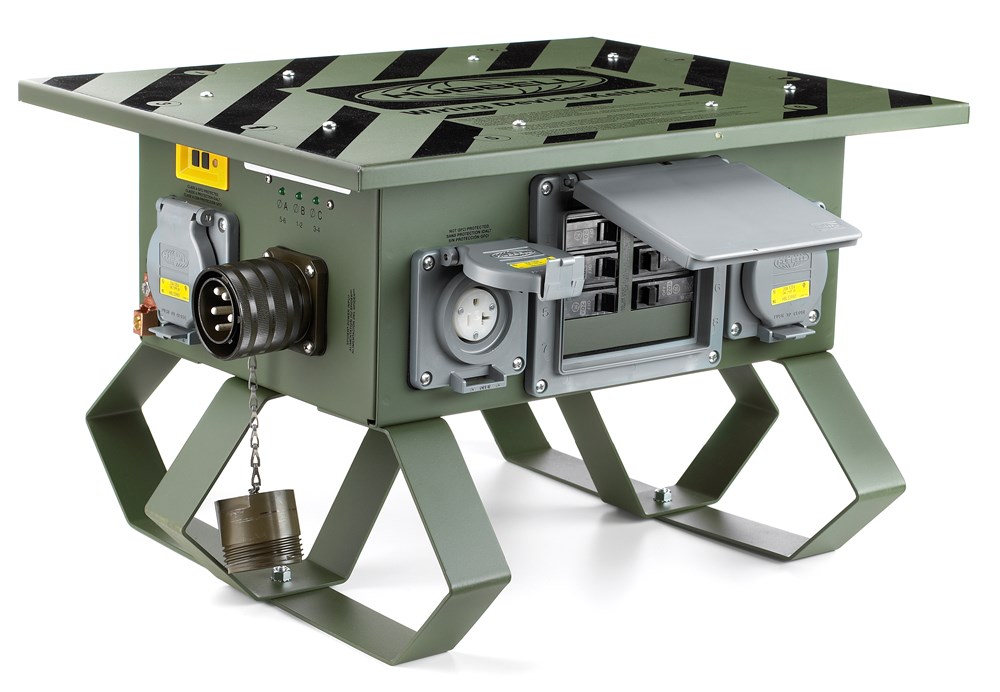

HWDK SCSB0M2 SPIDER II BOX, 60A CLA

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # SCSB0M2 | Codale Part # 2353422
$7,878.41/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Temporary Power Distribution, Spider Box, 60A 125/250V, 5) 5-20R Receptacles

Technical Information

Amperage
60 Amp
Applications
Heavy Duty Portable
Current
60 Amp
Material
Thermoplastic
NEMA
60A,In/Out,L5-20R
Number of Phases
3 Phase
Number of Poles
4 Pole
Number of Wires
5 Wire
Size
Standard Sized Product
Tc Connection
Pre-Wired
Type
1-50A 125,1-60A,1-60A 3 Phase 120,125V Straight Blade Receptacles,208V Pin,250V Inlet,3 Phase 120,6-20A,Sleeve Inlet,Sleeve Outlet
Voltage
120 Volt
Wattage
12480 Watt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Spider Temporary Wiring Products

General Product Info

12-Digit UPC
783585075655
Color
Green
Environmental Conditions
Indoor and Outdoor
Product Series
Class L Spider II
Product UPC
78358507565
Weight
51.4000 lb

Dimensions

Height
14 Inch
Length
21.3 Inch
Width
19.300 in

Certifications and Compliance

Country of Origin
USA
Features
  • Individual GFCI modules
  • TYPE 3R metallic enclosure and heavy duty,abuse resistant legs
  • Standard stab termination circuit breakers with gasketed lift cover
Voltage Rating
  • Three Phase 120 VAC
  • Three Phase 208 VAC
