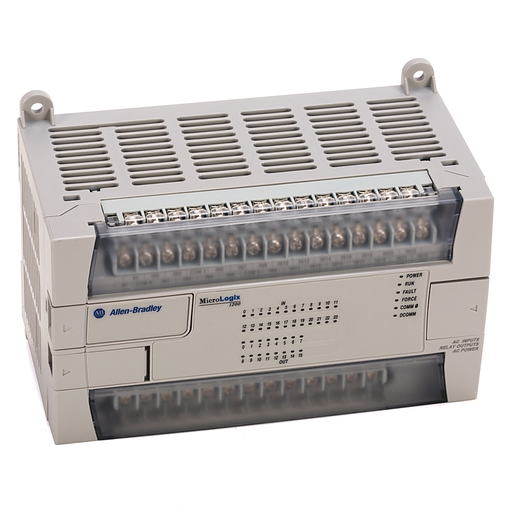

Allen-Bradley 1762-L40AWAR Micrologix 1200 40-Point Controller

Manufacturer: Allen Bradley / Rockwell | Catalog # 1762-L40AWAR | Codale Part # 2364925
$1,436.08/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
MicroLogix 1200 40 Point Controller

Technical Information

Display Type
No Display
Enclosure
IP20
Input Voltage
120 V
Memory
6 KB
Mounting Type
DIN Rail, Panel Mount
Number of Channels
24 I/P, 16 O/P
Operating Temperature
0 To 55 degrees C
Output
16 relay
Output Signal
relay
Power Supply
120/240V AC
Standard
C-Tick,C-UL-us CL1DIV2,CE,KCC
Type
40-Point

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
MicroLogix™ 1200

General Product Info

12-Digit UPC
781180463860
Class
controller
Product UPC
78118046386
Weight
2.0000 lb

Dimensions

Depth
87 Inch
Width
160
Features
  • Integrated high-performance I/O bus
  • Expands up to 136 I/O points
  • Includes two built-in 3/4-turn trim potentiometers with a digital output range of 0...250
  • Input module with 4 differential inputs
  • RTD module with 4 input channels
  • AC/DC relay output modules
  • Network support includes EtherNet/IP™, DeviceNet™, and DH-485 (local only)
  • Label to record I/O terminal designations
  • Provides additional programming/HMI port for connectivity to a DF1 full-duplex compatible device (only on MicroLogix™ 1200R controllers)
  • Software keying prevents incorrect positioning within the system
  • Supports floating point data files
  • Provides program data security
  • Contains isolated RS-232/RS-485 combo port for serial and networked communication
  • Output module with 4 single-ended outputs
  • Small footprint reduces panel space
  • Includes built-in independent 20 kHz high-speed counter
  • Digital, analog, and specialty I/O modules available
  • AC and DC voltages
  • Provides four latching or pulse-catch inputs and four interrupt inputs
  • Offers Programmable Limit Switch function
  • Finger-safe terminal blocks for I/O wiring
  • 8, 16, or 32 inputs or outputs
  • Compatible with 1762 MicroLogix Expansion I/O modules (up to six modules per controller)
  • Thermocouple module with 4 input channels plus a CJC sensor
  • Feature-rich functionality addresses a wide range of applications
  • Combination module with 8 inputs and 6 contact outputs
  • Combination module with 2 differential inputs and 2 single-ended outputs
