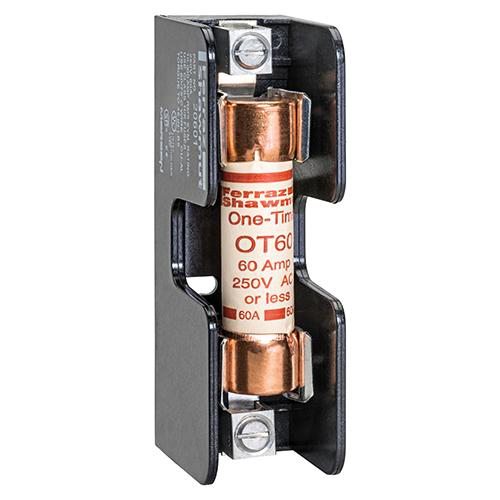

Mersen OT60 Class K5 / One-Time General Purpose Fuse - 60amp. Rated 250 volts AC / DC

Manufacturer: Mersen | Catalog # OT60 | Codale Part # 2365508
$11.06/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
One-Time OT and OTN general purpose fuses provide low cost protection for feeder and branch-circuits serving lighting, heating, and other non-motor loads. OT and OTN fuses will safely interrupt available short-circuit currents up to 50,000 amperes in all ratings. OT and OTN fuses are not rejection fuses and care should be taken to ensure that replacement fuses do not have lower interrupting ratings than original fuses. OTN(15-60) satisfy the Canadian electrical code requirement for Type P low melting-point, non-time-delay fuses.

Technical Information

Amperage
60 Amp
Applications
Feeders Resistive Heating Residential and Small Commercial Installations
Contact Material
Copper
Fuse Class
Class K5
Insulation Material
Paper
Interrupt Rating
50 kAIC
Mounting Type
Clip
Rated Voltage AC
250 V
Rated Voltage DC
250 V
Tc Connection
Ferrule
Terminal Material
Copper
Terminal Type
Ferrule
Type
Fast Acting
Voltage
250 VAC

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Ferraz Shawmut Canada, Inc.

General Product Info

12-Digit UPC
782001700201
Class
K-5
Construction
Paper
Product UPC
78200170020
Weight
0.086 lb

Dimensions

Diameter
0.81 Inch
Length
3 Inch
Features
  • Easy to read imprint label for quick recognition and replacement
  • Low cost for high protection value
Applications
  • Feeders
  • Branch circuits
  • Resistive heating
  • Residential and small commercial installations
Approvals & Standards
  • UL Listed to Standard 248-9 File E2137
  • CSA Certified to Standard C22.2 No. 248.9 (The Canadian Electrical Code requires these fuses in ratings 15 through 60A to be of the low melting point design; use OTN 15-60.)
  • Self-certified for DC per UL248
