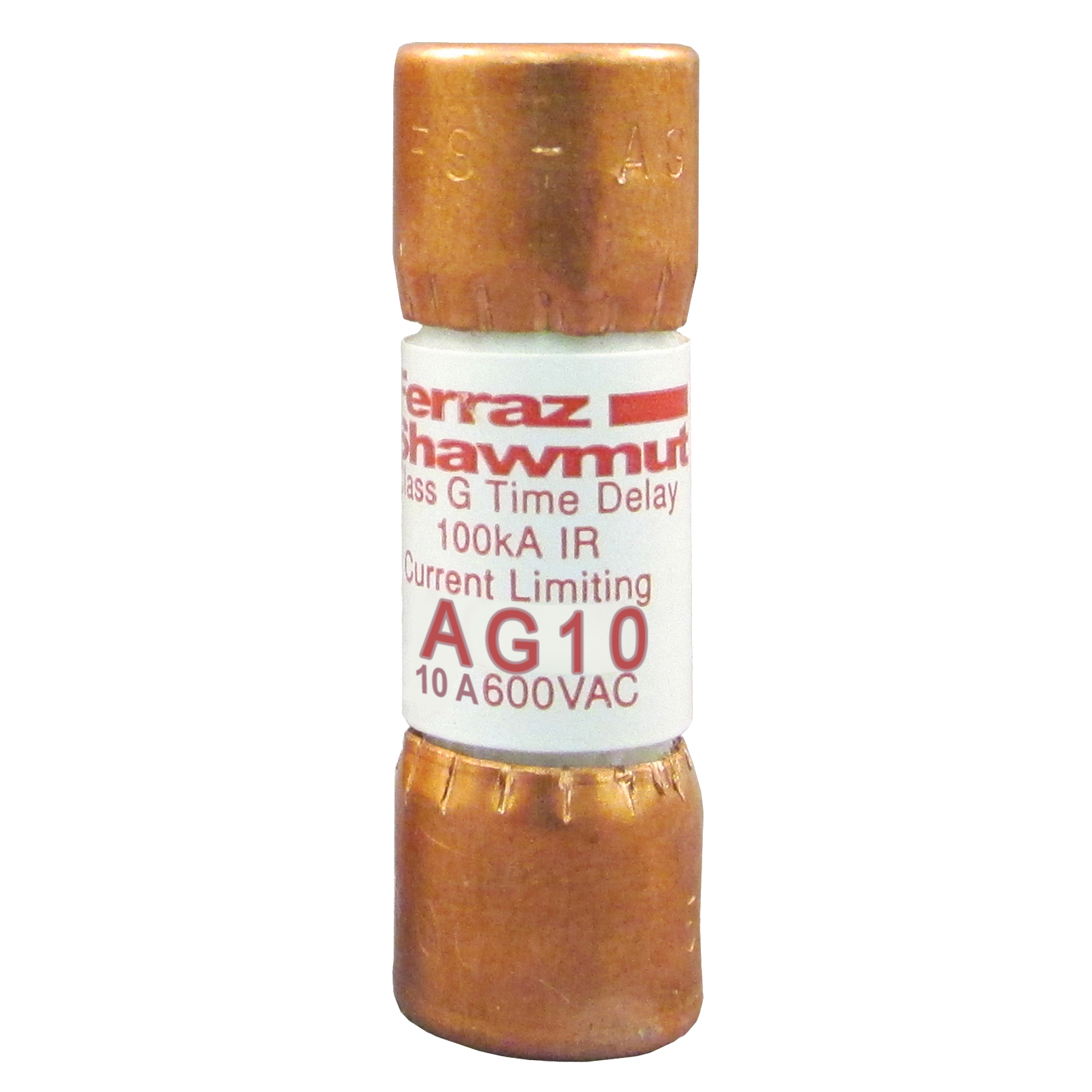

Mersen AG10 10 Amp 600 Volt Class G General Purpose Fuse

Manufacturer: Mersen | Catalog # AG10 | Codale Part # 2370341
$25.62/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
The Mersen Amp-Trap AG fuse series is a complete line of UL Listed Class G fuses with time-delay (above 5A rating). Class G fuses are made in four physical sizes and provide branch-circuit protection for lighting, heating, and appliance circuits.

Technical Information

Amperage
10 Amp
Applications
For Lighting, Heating, Appliances
Fuse Class
Class G
Insulation Material
GMG
Interrupt Rating
100 kAIC
Mounting Type
Clip
Rated Voltage AC
600 V
Tc Connection
Ferrule
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
North American Power Fuses
Voltage
600 VAC

Packaging

Pkg Qty
4

Manufacturer Information

Brand
Ferraz Shawmut Canada, Inc.

General Product Info

12-Digit UPC
782001905132
Class
G
Construction
Fiberglass
Product UPC
78200190513
Weight
0.02 lb

Dimensions

Diameter
0.41 Inch
Length
1.31 Inch
Features
  • Four unique sizes from 1/2-60 amperes do not allow inter-changeability with other fuse classes
  • Fiberglass bodies provide dimensional stability in harsh industrial settings
Applications
  • Lighting
  • Heating (except in Canada where fuses must be P or D type)
  • Appliances
Approvals & Standards
  • UL listed to standard 248-5 File E2137
  • CSA certified to standard C22.2 No. 248.5
